P43-600-Q50-PBT-U-CM12

SKU:
514850

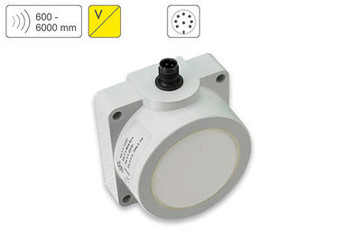

  • P43 Ultrasonic Sensor
P43-600-Q50-PBT-U-CM12

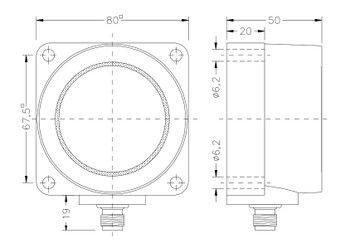

  • Dimensions
P43-600-Q50-PBT-U-CM12
$520.00

3 - 5 weeks delivery

  • Sensing Distance: 600 - 6000 mm
  • Output: 0...10V
  • Connection: CM12
  • Set Point Adjustment: Teach-In
  • Housing: PBT, (80 x 80 x 50 mm)
  • Features: Teach-In via cable (external contact closure)

Applications

• Distance measurement of moving machine parts

• Detection of moving objects made of all materials, including glass

• Presence detection of objects and humans

• Counting of objects with various shapes

• Completeness control of objects in bundles (bottles in a box)

• Level measurement of bulk goods storage and liquids in silos and containers

• Winding and unwinding control of rolls in paper-, coils- textile industries

• Web tension control in a multi-level working process

• Sorting control by measuring the height profile of packaging items

• Position control by measuring the stacking height and overlaps on loaders

• Area Monitoring

• Collision avoidance in the case of automated guided vehicles

P43-600-Q50-PBT-U-CM12

$520.00
