Bending beam (Shear-beam) force sensors with strain gauge measurement technology

Bending beams (Shear Beams) are ideal for measuring switching forces or actuating forces. They are firmly screwed to the application on one side of the beam and the force is applied as vertically as possible on the other side. The force is measured using the double bar measuring principle. As a result, these force sensors are largely insensitive to displacement of the vertical force introduction.

We rely on proven strain gauge technology, which leads to precisely defined relative changes in resistance of the strain gauges used in the event of changes in shape due to the introduction of force on the measuring cell. Thanks to the Wheatstone bridge circuit, temperature influences and lateral forces are optimally suppressed. Our ‘KM’ series provide a standard mV/V output requiring external signal conditioning. Our ‘KT’ series feature an integrated signal conditioner allowing for analog 0 – 10V or 4 – 20mA output signals. Bending beam force load cells are suitable for tensile and compressive force introduction, but usually only calibrated for one direction of force (pressure). This means that if the bending beams are calibrated for compressive forces, they also react to tensile forces, but do not output any exact measured values. Our many years of experience and our broad application know-how for the optimal design-in are available to you for the implementation of special measuring tasks, even for small quantities.



Contact us today to discuss your measurement and S beam load cell requirements. Call (858) 277-1420.

  • KT803 Sheara Beam Compression Load Cell w/Electronics

    KT803 K 5KN 2410 Z

    1124 lb. (5KN) capacity. Shear-Beam (Bending Beam) load cell with integrated signal conditioner. Compression and Tension. Calibrated for Tension (type Z). 0 – 10V output. IP40
    $458.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 1124 lb. (5kN) - Tension Rated...
    $458.00
  • KT803 Sheara Beam Compression Load Cell w/Electronics

    KT803 K 2KN 2410 D

    450 lb. (2KN) capacity. Shear-Beam (Bending Beam) load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 0 – 10V output. IP40
    $458.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 450 lb. (2kN) - Compression Rated...
    $458.00
  • KT703 Sheara Beam Compression Load Cell w/Electronics

    KT703 K 500N 2442 D

    112 lb. (500N) capacity. Shear-Beam (Bending Beam) load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 4 – 20mA output. IP40
    $396.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 112 lb. (500N) - Compression Rated...
    $396.00
  • KT703 Sheara Beam Compression Load Cell w/Electronics

    KT703 K 500N 2410 D

    112 lb. (500N) capacity. Shear-Beam (Bending Beam) load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 0 – 10V output. IP40
    $371.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 112 lb. (500N) - Compression Rated...
    $371.00

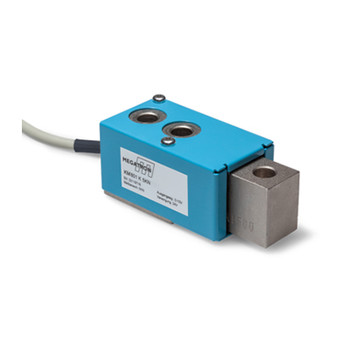

  • KM701 Load Cell

    KM801 K 5KN

    1124 lb. (5KN) capacity. Shear-Beam (Bending Beam) load cell. Compression and Tension. 2.0 mV/V output. IP40
    $227.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 1124 lb. (5KN) Rated Output 2.0 mV/V...
    $227.00
  • KM701 Load Cell

    KM801 K 2KN

    450 lb. (2KN) capacity. Shear-Beam (Bending Beam) load cell. Compression and Tension. 2.0 mV/V output. IP40
    $227.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 450 lb. (2KN) Rated Output 2.0 mV/V...
    $227.00
  • KM701 Load Cell

    KM701 K 1KN

    224 lb. (1KN) capacity. Shear-Beam (Bending Beam) load cell. Compression and Tension. 2.0 mV/V output. IP40
    $187.00
    Short Description About 5 weeks delivery if not in stock.   ---   Specifications Attribute Value Series / Type Shear Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 224 lb. (1KN) Rated...
    $187.00
  • KM701 Load Cell

    KM701 K 500N

    112 lb. (500N) capacity. Shear-Beam (Bending Beam) load cell. Compression and Tension. 2.0 mV/V output. IP40
    $187.00
    Short Description About 5 weeks delivery if not in stock.   --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 112 lb. (500N) Rated Output 2.0...
    $187.00
  • KM200 Shear Beam Load Cell

    KM200 K 10N

    2 lb. (10N) capacity. Shear-Beam (Bending Beam) load cell. Compression and Tension. 0.6 mV/V output. IP65
    $70.00
    Short Description About 8 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shear Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 2 lb. (10N) Rated Output 0.6 mV/V...
    $70.00
