P44 Series Ultrasonic Sensors

P44 Series Ultrasonic Sensors

Ultrasonic sensors for water level measurement


Ultrasonic Sensors for Water Level

Ultrasonic sensors are excellent for industrial-grade measurement of water levels, fill levels, or liquid volumes. They’re often used for wastewater, chemicals, semi-solids, agitated liquids, and more. The same sensors can be calibrated to sense distance, position, proximity, and occupancy.

Ultrasonic Sensors for Water by P3 America

The P44 series of ultrasonic water level sensors feature two analog outputs (0V–10V, 4mA–20mA, or both) and two switching outputs (NPN or PNP). It’s easy to switch between the outputs via a sensor button. Switching points are NoOpen and NoClosed.

Find our P44 line of ultrasonic water level sensors here or view our entire catalog of ultrasonic sensors to find the right fit for your application. Don’t hesitate to reach out to our technical staff for support to find the right sensor. At P3 America, our inventory is near-exhaustive and includes many designs that are hard to find elsewhere or are simply discontinued. If the part you need isn’t readily available, we can even engineer custom designs for you.

Call to talk with our engineers at 858-277-1420 or contact us online.

  • P44 Ultrasonic Sensor
P44-35-M30-UI2N-CM12

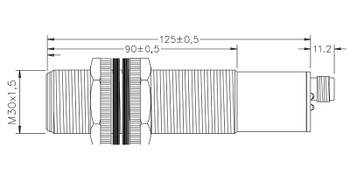

    Dimensions
P44-35-M30-UI2N-CM12

    P44-35-M30-UI2N-CM12

    60 to 350 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $510.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 60 - 350 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $510.00
  • P44 Ultrasonic Sensor
P44-160-M30-UI2N-CM12
    Dimensions
P44-160-M30-UI2N-CM12

    P44-160-M30-UI2N-CM12

    80 to 1600 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $510.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $510.00
  • P44 Ultrasonic Sensor
P44-160-M30-UI2P-CM12
    Dimensions
P44-160-M30-UI2P-CM12

    P44-160-M30-UI2P-CM12

    80 to 1600 mm sensing distance. 0...10V, 4...20mA and 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $476.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 2 x PNP (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $476.00
  • P44 Ultrasonic Sensor
P44-200-M30-2P-CM12
    Dimensions
P44-200-M30-2P-CM12

    P44-200-M30-2P-CM12

    250 to 2000 mm sensing distance. 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $443.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 250 - 2000 mm Output: 2 x PNP (N.O./N.C.) Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications Description •...
    $443.00
  • P44 Ultrasonic Sensor
P44-200-M30-UI2N-CM12
    Dimensions
P44-200-M30-UI2N-CM12

    P44-200-M30-UI2N-CM12

    250 to 2000 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $510.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 250 - 2000 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In...
    $510.00
  • P44 Ultrasonic Sensor
P44-200-M30-UI2P-CM12
    Dimensions
P44-200-M30-UI2P-CM12

    P44-200-M30-UI2P-CM12

    250 to 2000 mm sensing distance. 0...10V, 4...20mA and 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $476.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 250 - 2000 mm Output: 2 x PNP (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In...
    $476.00
  • P44 Ultrasonic Sensor
P44-350-M30-2P-CM12
    Dimensions
P44-350-M30-2P-CM12

    P44-350-M30-2P-CM12

    350 to 3500 mm sensing distance. 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $443.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 350 - 3500 mm Output: 2 x PNP (N.O./N.C.) Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button Direct replacement for discontinued...
    $443.00
  • P44 Ultrasonic Sensor
P44-350-M30-UI2N-CM12
    Dimensions
P44-350-M30-UI2N-CM12

    P44-350-M30-UI2N-CM12

    350 to 3500 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $490.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 350 - 3500 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In...
    $490.00
  • P44 Ultrasonic Sensor
P44-350-M30-UI2P-CM12
    Dimensions
P44-350-M30-UI2P-CM12

    P44-350-M30-UI2P-CM12

    350 to 3500 mm sensing distance. 0...10V, 4...20mA and 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $476.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 350 - 3500 mm Output: 2 x PNP (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In...
    $476.00
