Precision Multi-Turn Potentiometers

Precision Multi-Turn Potentiometers

Conductive plastic, wire-wound, hall effect (magnetic)

P3 America is a leading USA-based specialists for multi-turn potentiometers and multi-turn magnetic encoders. We offer wire-wound multi-turn and hybrid multi-turn potentiometers in 3 turn, 5 turn and 10 turn models and in wire-wound only, 15 turn and 20 turn models.

Our magnetic multi-turn encoders are field programmable and capable of measuring up to 200 turns (72000º) at 12 bit resolution (per turn). Analog outputs of 0 – 5V, 0 – 10V or 4-20mA are offered.

Our multi-turn sensors and encoders feature robust construction for the rigors of a multitude of applications across all industrial sectors. Mounting styles include bushing mount (sleeve bearing), servo mount (ball bearings) and hollow shaft.



  • MT10 / Wire-Wound Multi-Turn Potentiometer
    MT10 / Wire-Wound Multi-Turn Potentiometer

    MT10 Series

    10mm diameter. 3, 5 and 10 turns. Wire-wound. Bushing mount. 1/8" shaft diameter. Precision linearity. Long life.
    $85.00 - $87.00
    Short Description --- Specifications Attribute Value Series / Type MT10 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1800º (5 Turns) / 3600º (10...
    $85.00 - $87.00
  • MT12C Wire Wound Multi Turn Potentiometer

    MT12C Series

    12mm diameter. 3, 5 and 10 turns. Wire-wound. Bushing mount. 1/8" shaft diameter. Precision linearity. Long life.
    $43.00 - $46.00
    Short Description --- Specifications Attribute Value Series / Type MT12C / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1800º (5 Turns) / 3600º (10...
    $43.00 - $46.00
  • MT20 / Wire-Wound Multi-Turn Potentiometer

    MT20 Series

    20mm diameter. 3, 5 and 10 turns. Wire-wound. High precision. Longest life.
    $60.00 - $74.00
    Short Description --- Specifications Attribute Value Series / Type MT20 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1080º (3 Turns) / 1800º (5 Turns) /...
    $60.00 - $74.00
  • MT20H Series

    MT20H Series

    Hybrid element. 20mm diameter. 5 and 10 turns. Bushing mount. 1/4" shaft diameter. Precision linearity. Up to 10,000,000 turns
    $115.00
    Short Description --- Specifications Attribute Value Series / Type MT20H / Hybrid Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1800º (5 Turns) / 3600º (10...
    $115.00
  • NHP22 Series
Multi-Turn Potentiometer
    NHP22 Series
Multi-Turn Potentiometer

    NHP22 Series

    22mm diameter. 3, 5 and 10 turns. Up to +125ºC operating temperature. Wire-wound. Bushing mount. 1/4" shaft diameter. Precision linearity. Long life.
    $13.75
    Short Description --- Specifications Attribute Value Series / Type NHP22-10 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1080º (3 Turns) / 1800º (5 Turns) /...
    $13.75

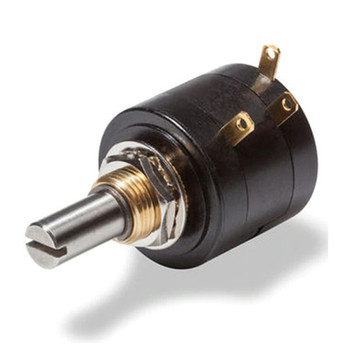

  • MT22 / Wire-Wound Multi-Turn Potentiometer

    MT22 Series

    22mm diameter. 3, 5 and 10 turns. Wire-wound. Bushing mount. 1/4" shaft diameter. Precision linearity. Long life.
    $22.00 - $36.00
    Short Description --- Specifications Attribute Value Series / Type MT22 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1080º (3 Turns) / 1800º (5 Turns) /...
    $22.00 - $36.00
  • MT22 Wire-Wound Potentiometer with IP54 Sealing

    MT22-SH (Sealed Housing) Series

    Epoxy sealed housing and o-ring shaft seal for IP54 rating. 3, 5 and 10 turns. Wire-wound. 22mm housing diameter. 1/4" shaft diameter. High resolution. Long life.
    $35.00 - $41.00
    Short Description --- Specifications Attribute Value Series / Type MT22 / Multi-Turn Potentiometer with Sealed Housing Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1080º (3 Turns) / 1800º (5...
    $35.00 - $41.00
  • P3 America Mt22ir Multi turn Potentiometer Internal Slip Clutch
    MT22IR / Wire-Wound Multi-Turn Potentiometer w/Internal Slip Clutch

    MT22IR (Slip Clutch) Series

    Internal slip clutch. Available in 3, 5 and 10 turns. Precision wire-wound element. 22mm housing diameter. 1/4" shaft diameter. Up to 1 million turns life.
    $51.00 - $59.00
    Short Description --- Specifications Attribute Value Series / Type MT22IR / Wire-Wound Multi-Turn Potentiometer w/Internal Slip Clutch Slipping Torque 20mN·m ~ 60mN·m Mounting / Bearing Bushing Mount / Sleeve...
    $51.00 - $59.00
  • MT22 / Dual Ganged Wire-Wound Multi-Turn Potentiometer

    MT22 Multi-Gang Series

    Multi-ganged (stacked). Up to 10 gangs. Available in 3, 5 and 10 turns. Precision wire-wound element. 22mm housing diameter. 1/4" shaft diameter. Up to 1 million turns life.
    $50.00
    Short Description --- Specifications Attribute Value Series / Type MT22 / Multi-Ganged / Multi-Turn Potentiometer - Wire-Wound # of Gangs Up to 10 Mounting / Bearing Bushing Mount / Sleeve Bearing Number of...
    $50.00
  • MT22H Hybrid Element Multi Turn Potentiometer

    MT22H Series

    Hybrid element. 22mm diameter. 3, 5 and 10 turns. Bushing mount. 1/4" shaft diameter. Precision linearity. Up to 5,000,000 turns
    $45.00 - $48.00
    Short Description --- Specifications Attribute Value Series / Type MT22H / Hybrid Element Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 3 Turns (1080º) / 1800º (5 Turns) /...
    $45.00 - $48.00
  • MT46 / Wire-Wound Multi-Turn Potentiometer

    MT46 Series

    46mm diameter. 3, 5, 10, 15 and 20 turns. Wire-wound. Bushing mount. 1/4" shaft diameter. Precision linearity. Long life.
    $138.00 - $190.00
    Short Description --- Specifications Attribute Value Series / Type MT46 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 1080º (3 turns) / 1800º (5 turns) /...
    $138.00 - $190.00
  • MT46 / Wire-Wound Multi-Turn Potentiometer

    MT46-20 R1K ±3% L0.3% EE (Limit Switches)

    46mm diameter. 20 turns. Limit switches. 1k ohms. 10 watts. Wire-wound. Bushing mount. 6mm shaft diameter. 0.3% linearity.
    $305.00
    Short Description --- Specifications Attribute Value Series / Type MT46 / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 20 Turns (7200º) Resistance Value 1K...
    $305.00
  • MTWOF / Oil Filled Wire-Wound Multi-Turn Potentiometer

    MTWOF46-10 R5K ±3% L0.3%

    10 turns. Heavy duty ribbed metal housing. Oil filled for extreme environments. 5K ohms. 0.3% linearity. 5 watts. IP65.
    $265.00
    Short Description --- Specifications Attribute Value Series / Type MTWOF / Oil Filled Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Bushing Mount / Sleeve Bearing Number of Turns 10 Turns (3600º) Resistance...
    $265.00
  • MT20S / Wire Wound Multi-Turn Potentiometer

    MT20S-3 R5K ±3% L0.25%

    20mm diameter. 3 turns. 5K ohms. Wire wound. Servo mount. 3mm shaft diameter. 0.25% linearity.
    $110.00
    Short Description --- Specifications Attribute Value Series / Type MT20S / Wire Wound Multi-Turn Potentiometer Mounting / Bearing Servo Mount / Ball Bearings Number of Turns 3 turns (1080º) Resistance Value 5K...
    $110.00
  • MT20HS / Hybrid Multi-Turn Potentiometer

    MT20HS-5 R5K ±5% L0.2%

    Hybrid element, long life. 20mm diameter. 5 turns. 5k ohms. Servo mount. 3mm shaft diameter. 0.2% linearity.
    $193.00
    Short Description --- Specifications Attribute Value Series / Type MT20HS / Hybrid Multi-Turn Potentiometer Mounting / Bearing Servo Mount / Ball Bearings Number of Turns 5 Turns (1800º) Resistance Value 5K ohms...
    $193.00
  • MT22S series / Multi-Turn Precision Wirewound Potentiometer

    MT22S Series

    Servo Mount. 22mm diameter. 3, 5 and 10 turns. Wire-wound. Ball bearings. 1/8" shaft diameter. Precision linearity. Long life.
    $59.00
    Short Description --- Specifications Attribute Value Series / Type MT22S / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Servo Mount / Ball Bearings Number of Turns 1080º (3 Turns) / 1800º (5 Turns) /...
    $59.00
  • MT22HS series / Multi-Turn Precision Hybrid Potentiometer

    MT22HS-10 R10K ±10% L0.25%

    10 turns. 10k ohms. Hybrid element. Servo mount. 6mm shaft diameter. 0.25% linearity. 5 million turns life.
    $79.00
    Short Description --- Specifications Attribute Value Series / Type MT22HS / Hybrid Element Multi-Turn Potentiometer Mounting / Bearing Servo Mount / Ball Bearings Number of Turns 10 Turns (3600º) Resistance...
    $79.00
  • MT46S / Wire-Wound Multi-Turn Potentiometer

    MT46S-10 R10K ±3% L0.1% A19.05 DM6.35

    46mm diameter. 10 turns. 10k ohms. 5 watts. Wire-wound. Servo mount. 1/4" shaft diameter. 0.1% linearity.
    $295.00
    Short Description --- Specifications Attribute Value Series / Type MT46S / Wire-Wound Multi-Turn Potentiometer Mounting / Bearing Servo Mount / Ball Bearings Number of Turns 10 Turns (3600º) Resistance Value 10K...
    $295.00
  • MTHE2210 / 10 Turn Hall Effect Potentiometer

    MTHE2210

    10 turn hall effect (contactless). 20 million turns life. 5V supply, 0.25 ~ 4.5V output. IP50
    $119.00
    Short Description --- Specifications Attribute Value Series / Type MTHE2210 / 10 Turn Hall Effect Potentiometer # of Turns 10 (3600º) Mechanical Rotation Endless Supply Voltage 5 VDC ±10% Output 0.25 -...
    $119.00
  • Eta 25pm field programmable multi turn potentiometer

    ETA25PM 6x22 2405 F0.15B

    Up to 200 turns. Field programmable. 24V supply. 0 - 5V output. 12 bit resolution. 6mm shaft diameter.
    $115.00
    Short Description --- Specifications Attribute Value Series / Type ETA25PM / Field Programmable Multi-Turn Potentiometer # of Turns up to 200 Mechanical Rotation Endless Supply Voltage 9 to 30 VDC Output 0 - 5...
    $115.00
  • MAB36APM programmable precision multi-turn potentiometer

    MAB36APM 12 2410

    Up to 200 turns. Field programmable. 24V supply. 0 - 10V output. 12 bit resolution. 6mm shaft diameter. IP65.
    $205.00
    Short Description --- Specifications Attribute Value Series / Type MAB36APM / Field Programmable Multi-Turn Potentiometer # of Turns up to 200 (72000º) Mechanical Rotation Endless Supply Voltage 15 to 30...
    $205.00
  • HTx36 Series w/solid shaft
    HTx36 Series w/hollow shaft

    HTA36PM Series

    Multi-Turn Hall Effect Encoder. Analog voltage or milli-amp output. High resolution. Up to 200 turns. Field programmable. Ø36 mm metal housing. Robust, ball bearing, sealed, with solid or hollow shaft.
    Short Description Magnetic Multi-Turn Rotary Encoders with Solid or Hollow Shaft Hall encoder in Ø36 mm metal housing (up to IP67) Absolute encoder:* *Maximum shaft rotation in powered-off state without losing reference is...
  • RLD22-15 1/4"

    RLD22-15 1/4"

    Turns counting dial. Up to 15 turns (100 divisions per turn). 1/4" shaft acceptance. 22mm diameter. Locking mechanism.
    $6.50
    Short Description --- Specifications Attribute Value Series / Type RLD22 - Turns counting dial Number of Turns up to 15 Division per Turn 100 (0 ~ 99) Shaft Acceptance 1/4" (6.35mm) Bushing Acceptance M10 max...
    $6.50

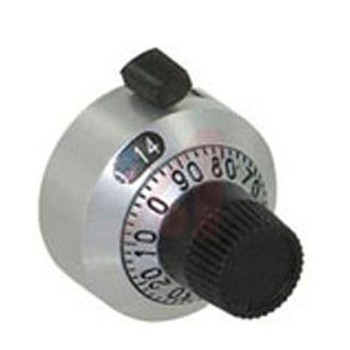

  • RLM22-15 1/4"

    RLM22-15 1/4"

    Turns counting dial. Up to 15 turns (100 divisions per turn). 1/4" shaft acceptance. 22mm diameter. Locking mechanism. Metal housing.
    $7.00
    Short Description --- Specifications Attribute Value Series / Type RLM22 - Turns counting dial (Metal Housing) Number of Turns up to 15 Division per Turn 100 (0 ~ 99) Shaft Acceptance 1/4" (6.35mm) Bushing...
    $7.00
  • DC10-27B 6.5

    DC10-27B 6.5

    Turns counting dial. 0 ~ 999 digital readout over 10 turns (100 divisions per turn). 1/4" shaft acceptance. 27mm diameter. Locking mechanism.
    $41.00
    Short Description --- Specifications Attribute Value Series / Type DC10 - Turns counting dial with digital readout Number of Turns up to 10 Division per Turn 100 (0 ~ 999) Shaft Acceptance 1/4" (6.35mm) Bushing...
    $41.00
  • DA10-24B6.5 (Black) - Turns counting dial with digital readout

    DA10-24B6.5 (Black)

    Turns counting dial. 0 ~ 999 digital readout over 10 turns (100 divisions per turn). 1/4" shaft acceptance. 24mm diameter. Locking mechanism. Ball bearings for precision feel.
    $52.00
    Short Description --- Specifications Attribute Value Series / Type DA10 - Turns counting dial with digital readout Number of Turns up to 10 Division per Turn 100 (0 ~ 999) Shaft Acceptance 1/4" (6.35mm) Bushing...
    $52.00
  • MF20-46B 6.5

    MF20-46B 6.5

    Turns counting dial. Up to 20 turns (100 divisions per turn). 1/4" shaft acceptance. 46mm diameter. Locking mechanism.
    $31.00
    Short Description --- Specifications Attribute Value Series / Type MF20 - Turns counting dial Number of Turns up to 20 Division per Turn 100 (0 ~ 99) Shaft Acceptance 1/4" (6.35mm) Bushing Acceptance M10 max...
    $31.00
  • MF20 Turns counting dial

    MF20-46 6.5

    Turns counting dial. Up to 20 turns (100 divisions per turn). 1/4" shaft acceptance. 46mm diameter.
    $29.00
    Short Description --- Specifications Attribute Value Series / Type MF20 - Turns counting dial Number of Turns up to 20 Division per Turn 100 (0 ~ 99) Shaft Acceptance 1/4" (6.35mm) Bushing Acceptance M10 max...
    $29.00

The Multi-Turn Benefit

Precision multi-turn potentiometers are used in control applications to measure rotations exceeding 360º and as a high resolution panel input controller for precision settings. Widely used in manufacturing equipment, factory automation, mobile machinery, test and measuring devices, medical equipment and aerospace applications.

A Range of Features

Beneath the umbrella of multi-turn potentiometers come a number of other specifications. With P3 America you can find wire-wound, hybrid, and hall effect (contactless) options as well as turns counting dials. Across part types, our quality products have high success rates and delivery times are short.

Experience Technical Support

Our experienced staff is prepared to speak technically with you no matter what industry you are in. We offer product customization, rapid prototyping, application engineering, OEM support, and distribution support services. We even customize components for single unit orders. Our team of sales engineers answers requests quickly and our product delivery time is the industry’s best.

Contact us to find cost-effective and long-lasting solutions quickly.
