PIL Sensoren GmbH Ultrasonic Sensors

Industrial standard design for distance measurement, object detection and level measurement are a perfect complement for the sensor field of non-contact measuring systems. They measure distances, states, shapes and much more independent of material, color and ambient light. Their areas of application range from automation technology to branches of automotive engineering, the chemical industry, food industry and medical technology.

 Ultrasonic Sensors Catalog

 Cross Reference - Honeywell


P41 Series P42 Series

Up to 3500mm sensing.
With teach-in button. One
analog (0..10V / 4..20mA)
 or two switching outputs.
Up to 4000mm sensing.
Program via RS232 / RS485
One analog (0..10V / 4..20mA)
and two switching outputs.

______________  ______________

 P43 Series P44 series

Up to 6000mm sensing.
With teach-in button. One
analog (0-10V / 4-20mA)
or two switching outputs.
Up to 3500mm sensing.
With teach-in button. One
analog (0..10V / 4..20mA)
or two switching outputs.

 ______________  ______________

 P47 Series  P48 Series

Up to 5000mm sensing.
Fixed analog or one
switching output.
Hold/sync function.
Up to 1100mm sensing.
Ultrasonic Barrier.
Compact. Very high
switching frequency.

 ______________  ______________

 P49 Series  P53 Series

 Up to 6000mm sensing.
Cost effective sensor
for OEM markets in
higher quantities.

 Up to 1500mm sensing.
Fully sealed, stainless
steel for harsh or
 hygienic applications.



--

Browse by Measurement Distance (Stroke Length), Shaft Type & more Hide Filters Show Filters
Show More

Show More

  • P42 Ultrasonic Sensor
P42-60-M30-ST-I2P-RS232-C723

    P42-60-M30-ST-I2P-RS232-C723

    100 to 600 mm sensing distance. 4...20mA and 2 x PNP (N.O./N.C.) output. Programmable. RS232 interface. Stainless steel housing (M30 diameter).
    $827.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 600 mm Output: 2 x PNP (N.O./N.C.) & 4...20mA Interface: RS232 Connection: C723 Set Point Adjustment: Codeable Housing: M30, Stainless Steel Direct replacement for...
    $827.00
  • P44 Ultrasonic Sensor
P44-35-M30-UI2N-CM12

    P44-35-M30-UI2N-CM12

    60 to 350 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $510.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 60 - 350 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $510.00
  • P43 Ultrasonic Sensor
P43-25-M12-ST-U-CM12

    P43-25-M12-ST-U-CM12

    25mm up to 250mm Ultrasonic Sensor, 0...10V output. Stainless steel housing. M12 diameter. Teach-in via cable (remote switch).
    $343.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 25 - 250 mm Output: 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M12, Stainless Steel Features: Teach-In via cable (external contact closure) --- Applications...
    $343.00
  • P42 Ultrasonic Sensor
P42-60-M30-ST-U2P-RS232-C723

    P42-60-M30-ST-U2P-RS232-C723

    100 to 600 mm sensing distance. 0...10V and 2 x PNP (N.O./N.C.) output. Programmable. RS232 interface. Stainless steel housing (M30 diameter).
    $747.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 600 mm Output: 2 x PNP (N.O./N.C.) and 0...10V Interface: RS232 Connection: C723 Set Point Adjustment: Codeable Housing: M30, Stainless Steel Direct replacement for...
    $747.00
  • P41 Ultrasonic Sensor
P41-40-I-CM12

    P41-40-I-CM12

    30mm up to 400 mm Ultrasonic Sensor, 4...20mA output. Teach-in via button.
    $278.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 30 - 400 mm Output: 4...20mA Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, 36 x 101 mm Features: Teach-In Button, Hold/Sync Direct replacement for...
    $278.00
  • P44 Ultrasonic Sensor
P44-160-M30-UI2N-CM12

    P44-160-M30-UI2N-CM12

    80 to 1600 mm sensing distance. 0...10V, 4...20mA and 2 x NPN (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $510.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 2 x NPN (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $510.00
  • P43 Ultrasonic Sensor

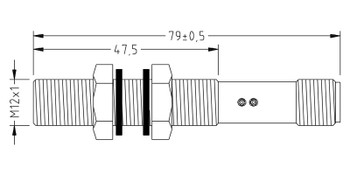

P43-25-M12-ST-N-CM12

    P43-25-M12-ST-N-CM12

    25mm up to 250mm Ultrasonic Sensor, 1 x NPN (N.O./N.C) output. Stainless steel housing. M12 diameter. Teach-in via cable (remote switch).
    $300.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 25 - 250 mm Output: 1 x NPN (N.O./N.C.) Connection: CM12 Set Point Adjustment: Teach-In Housing: M12, Stainless Steel Features: Teach-In via cable (external contact...
    $300.00
  • P41 Ultrasonic Sensor
P41-50-I-CM12

    P41-50-I-CM12

    60mm up to 500 mm Ultrasonic Sensor, 4...20mA output. Teach-in via button.
    $278.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 60 - 500 mm Output: 4...20mA Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, 36 x 101 mm Features: Teach-In Button, Hold/Sync Direct replacement for...
    $278.00
  • P44 Ultrasonic Sensor
P44-160-M30-UI2P-CM12

    P44-160-M30-UI2P-CM12

    80 to 1600 mm sensing distance. 0...10V, 4...20mA and 2 x PNP (N.O./N.C.) output. PBT housing (M30 diameter). Teach-in via button.
    $476.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 2 x PNP (N.O./N.C.) and 4...20mA and 0...10V Connection: CM12 Set Point Adjustment: Teach-In Housing: M30, PBT Features: Teach-In Button --- Applications...
    $476.00
  • P43 Ultrasonic Sensor
P43-25-M12-ST-P-CM12

    P43-25-M12-ST-P-CM12

    25mm up to 250mm Ultrasonic Sensor, 1 x PNP (N.O./N.C) output. Stainless steel housing. M12 diameter. Teach-in via cable (remote switch).
    $300.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 25 - 250 mm Output: 1 x PNP (N.O./N.C.) Connection: CM12 Set Point Adjustment: Teach-In Housing: M12, Stainless Steel Features: Teach-In via cable (external contact...
    $300.00
  • P42 Ultrasonic Sensor
P42-90-M30-ST-C723

    P42-90-M30-ST-C723

    100 to 900 mm sensing distance. External evaluation electronics required. Stainless steel housing (M30 diameter).
    $491.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 900 mm (Sensor head only) Output: External evaluation electronics required Connection: C723 Housing: M30, Stainless Steel --- Applications Description • Distance...
    $491.00
  • P41 Ultrasonic Sensor
P41-80-I-CM12

    P41-80-I-CM12

    100mm up to 800 mm Ultrasonic Sensor, 4...20mA output. Teach-in via button.
    $278.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 800 mm Output: 4...20mA Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, 36 x 101 mm Features: Teach-In Button, Hold/Sync Direct replacement for...
    $278.00
