• P41 Ultrasonic Sensor
  • P41-160-U-CM12

3 - 5 weeks delivery

  • Sensing Distance: 80 - 1600 mm
  • Output: 0...10V
  • Connection: CM12
  • Set Point Adjustment: Teach-In

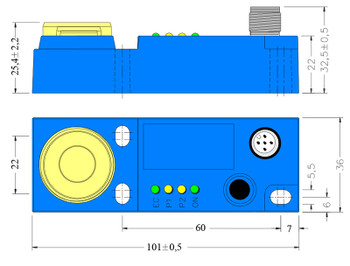

  • Housing: PBT, 36 x 101 mm
  • Features: Teach-In Button, Hold/Sync


• Distance measurement of moving machine parts

• Detection of moving objects made of all materials, including glass

• Presence detection of objects and humans

• Counting of objects with various shapes

• Completeness control of objects in bundles (bottles in a box)

• Level measurement of bulk goods storage and liquids in silos and containers

• Winding and unwinding control of rolls in paper-, coils- textile industries

• Web tension control in a multi-level working process

• Sorting control by measuring the height profile of packaging items

• Position control by measuring the stacking height and overlaps on loaders

• Area Monitoring

• Collision avoidance in the case of automated guided vehicles
