Draw Wire Sensors (String Potentiometers)

Draw Wire Sensors (String Potentiometers)

Draw-wire sensors, also called cable transducers or string pots, are low-cost and compact solutions for accurate measuring of an object’s mechanical position. Core components of a draw wire sensor are a precision measuring wire and a sensor element (e.g. potentiometer or encoder), which convert the path change into a proportional electrical signal. P3 Americas range of industrial draw wire sensors are capable of measuring displacements from 50 millimeters up to 42 meters. Draw-wire sensors utilize a flexible cable, a spring-loaded spool, and a sensor to precisely measure linear position. They do not need precise linear guidance and are ideal for wet, dirty, or otherwise harsh operating environments.

  • MH120

    MH120

    Cost effective sensor for construction machinery. 3...10 meters measuring lengths. Analog output signals (potentiometer, 0...5V, 0....10V or 4 - 20mA). ±0.5% linearity (0.25% or 0.1% option). IP67 (IP69K option)
    $344.00 - $623.00
    Short Description 3 - 4 weeks delivery. --- Specifications Attribute Value Type Draw Wire Sensor Measurement Range 3, 4, 5, 6, 7, 8, 9 or 10 meters Output Signals potentiometer (1 kΩ), 0...5 V, 0...10 V, 0...5 V...
    $344.00 - $623.00
    Quick view
  • MH60

    MH60

    Cost effective sensor for construction machinery. 1...4 meters measuring lengths. Analog output signals (potentiometer, 0...5V, 0....10V or 4 - 20mA). ±0.5% linearity (0.25% or 0.1% option). IP67 (IP69K option)
    $262.00 - $434.00
    Short Description 3 - 4 weeks delivery. --- Specifications Attribute Value Type Draw Wire Sensor Measurement Range 1, 1.5, 2, 2.5, 3, 3.5 and 4 meters Analog Output potentiometer (1 kΩ), 0...5 V, 0...10 V, 0...5 V...
    $262.00 - $434.00
    Quick view
  • SX120

    SX120

    Cost effective sensor for construction machinery. 3.125...5 meters measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.1% linearity. IP65 (IP67 option)
    $513.00 - $673.00
    Short Description 3 - 4 weeks delivery. --- Specifications Attribute Value Type Draw Wire Sensor Measurement Range 3125mm (3.125 meters), 4 meters and 5 meters Analog Output potentiometer (1 kΩ),  0...10 V, 0...5 V...
    $513.00 - $673.00
    Quick view
  • SX135-40

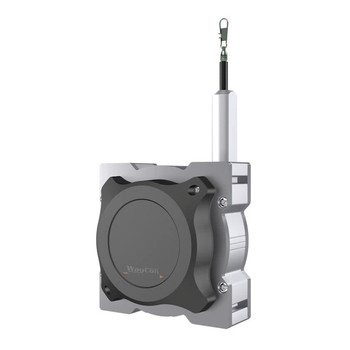

    SX135-40

    Cost effective sensor for construction machinery. 10...42.5 meters measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.1% linearity. IP65 (IP67 option)
    $986.00 - $1,418.00
    Short Description 3 - 4 weeks delivery. --- Specifications Attribute Value Type Draw Wire Sensor. Industrial. Precision. Measurement Range 10, 12, 15, 20, 25, 30, 35, 40 and 42.5 meters Analog Output potentiometer (1...
    $986.00 - $1,418.00
    Quick view
  • SX135-8

    SX135-8

    Cost effective sensor for construction machinery. 6, 7 and 8 meter measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.1% linearity. IP65 (IP67 option)
    $657.00 - $809.00
    Short Description 3 - 4 weeks delivery. --- Specif Specifications Attribute Value Type Draw Wire Sensor. Industrial. Precision. Measurement Range 6, 7 and 8 meters Analog Output potentiometer (1 kΩ),  0...10 V, 0....
    $657.00 - $809.00
    Quick view
  • SX50

    SX50

    Cost effective sensor for construction machinery. 50...1250 millimeters measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.5% linearity. IP65 (IP67 option)
    $320.00 - $463.00
    Short Description 3 - 4 weeks delivery. --- Specifications   Attribute Value Type Draw Wire Sensor. Industrial. Precision. Measurement Range 50, 75, 100, 125, 150, 225, 250, 300, 375, 500, 625, 750, 1000 and 1250...
    $320.00 - $463.00
    Quick view
  • SX80

    SX80

    Cost effective sensor for construction machinery. 1000...3000 millimeters measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.5% linearity. IP65 (IP67 option)
    $402.00 - $592.00
    Short Description 3 - 4 weeks delivery. --- Specifications Attribute Value Type Draw Wire Sensor. Industrial. Precision. Measurement Range 1000, 1500, 2000, 2500 and 3000 millimeters Analog Output potentiometer (1...
    $402.00 - $592.00
    Quick view

Benefits

There are several advantages to employing these devices.

  • They are easily customized
  • They are ideal for difficult positions
  • They offer high operational safety
  • They have a long service life
  • They offer both analog and digital outputs
  • They are allow for easy, fast and flexible mounting
