P49 Series Ultrasonic Sensors

P49 Series Ultrasonic Sensors

Ultrasonic position sensors


Ultrasonic Position Sensing

Ultrasonic position sensors perform where other devices like photoelectric sensors and proximity switches fail. These aren’t affected by factors like shape, color, or surface texture. Precisely detect the position of other parts or materials with industrial-grade reliability. Calibrate them to sense liquids, fill level, distance, proximity, and occupancy.

Sourcing Ultrasonic Position Sensors with P3 America

Our P49 line are OEM ultrasonic sensors. They’re customizable and cost-effective in high volumes for price-sensitive markets.

Analog 0-10V, 4-20mA or switching output PNP
Housing options: Q50, M30, and M18

Talk Directly with an Engineer

Find the ultrasonic position sensors component you need here online with our full inventory of ultrasonic sensors, or consult our engineers for help finding the ideal part. If we can’t find the part in stock, we’ll custom engineer one for the job. Call 512-337-7336 or contact us online.

  • P49 Ultrasonic Sensor P49-40-M18-U-CM12
    Dimensions P49-40-M18-U-CM12
    Add to Cart

    P49-40-M18-U-CM12

    30mm up to 400mm Ultrasonic Sensor, 0...10V output. PBT housing. M18 diameter. CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 30 - 400 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M18 Features: Fixed output curve --- Applications Description • Distance...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-40-M18-PNO-CM12
    Dimensions P49-40-M18-PNO-CM12
    Add to Cart

    P49-40-M18-PNO-CM12

    30mm up to 400mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M18 diameter. Teach-in (via cable). CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 30 - 400 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M18 Features: Teach-In via cable --- Applications...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-50-M18-U-CM12
    Dimensions P49-50-M18-U-CM12
    Add to Cart

    P49-50-M18-U-CM12

    60mm up to 500mm Ultrasonic Sensor, 0...10V output. PBT housing. M18 diameter. CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 60 - 500 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M18 Features: Fixed output curve --- Applications Description • Distance...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-50-M18-PNO-CM12
    Dimensions P49-50-M18-PNO-CM12
    Add to Cart

    P49-50-M18-PNO-CM12

    60mm up to 500mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M18 diameter. Teach-in (via cable). CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 60 - 500 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M18 Features: Teach-In via cable --- Applications...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-80-M18-U-CM12
    Dimensions P49-80-M18-U-CM12
    Add to Cart

    P49-80-M18-U-CM12

    100mm up to 800mm Ultrasonic Sensor, 0...10V output. PBT housing. M18 diameter. CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 800 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M18 Features: Fixed output curve --- Applications Description • Distance...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-80-M18-PNO-CM12
    Dimensions P49-80-M18-PNO-CM12
    Add to Cart

    P49-80-M18-PNO-CM12

    100mm up to 800mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M18 diameter. Teach-in (via cable). CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 100 - 800 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M18 Features: Teach-In via cable --- Applications...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-160-M18-U-CM12
    Dimensions P49-160-M18-U-CM12
    Add to Cart

    P49-160-M18-U-CM12

    80mm up to 1600mm Ultrasonic Sensor, 0...10V output. PBT housing. M18 diameter. CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M18 Features: Fixed output curve --- Applications Description • Distance...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-80-M18-PNO-CM12
    Dimensions P49-80-M18-PNO-CM12
    Add to Cart

    P49-160-M18-PNO-CM12

    80mm up to 1600mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M18 diameter. Teach-in (via cable). CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 80 - 1600 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M18 Features: Teach-In via cable --- Applications...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-200-M18-U-CM12
    Dimensions P49-200-M18-U-CM12
    Add to Cart

    P49-200-M18-U-CM12

    200mm up to 2000mm Ultrasonic Sensor, 0...10V output. PBT housing. M18 diameter. CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 200 - 2000 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M18 Features: Fixed output curve --- Applications Description • Distance...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-200-M18-PNO-CM12
    Dimensions P49-200-M18-PNO-CM12
    Add to Cart

    P49-200-M18-PNO-CM12

    200mm up to 2000mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M18 diameter. Teach-in (via cable). CM12 Connector.
    $215.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 200 - 2000 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M18 Features: Teach-In via cable --- Applications...
    $215.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-350-M30-U-CM12

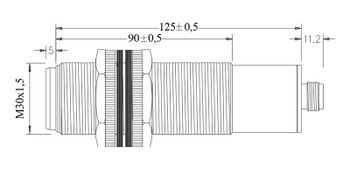

    Dimensions P49-350-M30-U-CM12
    Add to Cart

    P49-350-M30-U-CM12

    350mm up to 3500mm Ultrasonic Sensor, 0...10V output. PBT housing. M30 diameter. CM12 Connector.
    $258.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 350 - 3500 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, M30 Features: Fixed output curve --- Applications Description • Distance...
    $258.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-350-M30-PNO-CM12
    Dimensions P49-350-M30-PNO-CM12
    Add to Cart

    P49-350-M30-PNO-CM12

    350mm up to 3500mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing. M30 diameter. Teach-in (via cable). CM12 Connector.
    $258.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 350 - 3500 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: Teach-In Housing: PBT, M30 Features: Teach-In via cable --- Applications...
    $258.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-600-Q50-U-CM12
    Dimensions P49-600-Q50-U-CM12
    Add to Cart

    P49-600-Q50-U-CM12

    600mm up to 6000mm Ultrasonic Sensor, 0...10V output. PBT housing (80 x 80 x 50 mm). CM12 Connector.
    $440.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 600 - 6000 mm Output: 0...10V Connection: CM12 Set Point Adjustment: - Housing: PBT, 80 x 80 x 50 (mm) Features: Fixed output curve --- Applications...
    $440.00
    Add to Cart
  • P49 Ultrasonic Sensor P49-600-Q50-PNO-CM12
    Dimensions P49-600-Q50-PNO-CM12
    Add to Cart

    P49-600-Q50-PNO-CM12

    600mm up to 6000mm Ultrasonic Sensor, 1 x PNP (N.O.) output. PBT housing (80 x 80 x 50 mm). CM12 Connector.
    $440.00
    Short Description 3 - 5 weeks delivery Sensing Distance: 600 - 6000 mm Output: 1 x PNP (N.O.) Connection: CM12 Set Point Adjustment: - Teach-In Housing: PBT, 80 x 80 x 50 (mm) Features: Teach-In via...
    $440.00
    Add to Cart
