P49-200-M18-U-CM12

SKU:
516692

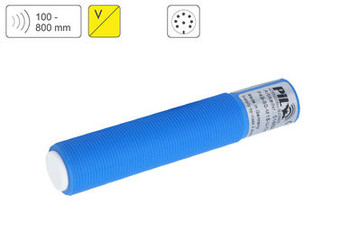

  • P49 Ultrasonic Sensor
P49-200-M18-U-CM12
  • Dimensions
P49-200-M18-U-CM12
$215.00

3 - 5 weeks delivery

  • Sensing Distance: 200 - 2000 mm
  • Output: 0...10V
  • Connection: CM12
  • Set Point Adjustment: -
  • Housing: PBT, M18
  • Features: Fixed output curve

Applications

• Distance measurement of moving machine parts

• Detection of moving objects made of all materials, including glass

• Presence detection of objects and humans

• Counting of objects with various shapes

• Completeness control of objects in bundles (bottles in a box)

• Level measurement of bulk goods storage and liquids in silos and containers

• Winding and unwinding control of rolls in paper-, coils- textile industries

• Web tension control in a multi-level working process

• Sorting control by measuring the height profile of packaging items

• Position control by measuring the stacking height and overlaps on loaders

• Area Monitoring

• Collision avoidance in the case of automated guided vehicles

P49-200-M18-U-CM12

$215.00
