P47-60-M18-U-2m

SKU:
512353
  • P47 Ultrasonic Sensor
P47-60-M18-U-2m

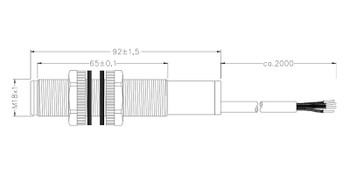

  • Dimensions
P47-60-M18-U-2m
$304.00

3 - 5 weeks delivery

  • Sensing Distance: 100 - 600 mm
  • Output: 0...10V
  • Connection: Cable, 2m
  • Set Point Adjustment: -
  • Housing: M18, PBT
  • Features: Fixed output curve

Direct replacement for discontinued Honeywell Ultrasonic Sensors:

Honeywell part#: 947-F4Y-2D-1C0-300E

Honeywell SKU#: SCN-1559SC

Applications

• Distance measurement of moving machine parts

• Detection of moving objects made of all materials, including glass

• Presence detection of objects and humans

• Counting of objects with various shapes

• Completeness control of objects in bundles (bottles in a box)

• Level measurement of bulk goods storage and liquids in silos and containers

• Winding and unwinding control of rolls in paper-, coils- textile industries

• Web tension control in a multi-level working process

• Sorting control by measuring the height profile of packaging items

• Position control by measuring the stacking height and overlaps on loaders

• Area Monitoring

• Collision avoidance in the case of automated guided vehicles
