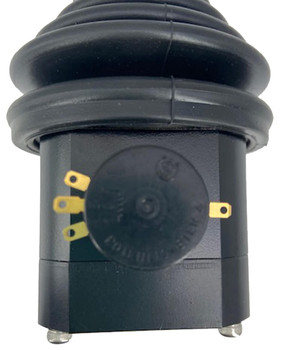

JC50-XI-13R1GP CT

SKU:
711149
  • JC50-XI-1R1GPCT / Potentiometer Joystick
  • Directional micro-switches and center detect micro-switch
  • Precision 10K ohm potentiometer with center tap
$564.00

Specifications

Attribute Value
Series / Type JC50 - Potentiometer Joystick
Number of Axis Single
Handle Deflection ±30º (60º overall)
Handle Operating Pattern Type 'I' (see pdf)
Resistance Value 10K ohms with center tap
Spring Return to Center Yes
Return to Center Accuracy ±50% ±1.5%
Pushbutton on Handle No
Pushbutton Rating n/a
Center Detect Micro-Switch Yes ('OFF' @ ±5º from center. 'ON' @ center)
Directional Micro-Switches Yes ('ON' @ ±5º from center. 'OFF' @ center)
Micro-Switch Rating 125VAC / 5A
Operating Temperature -20ºC to +65ºC
Rubber Boot Yes
Mounting Plate  Yes
Life Expectancy >5,000,000 Random Operations
Mounting Below Panel
IP Rating IP65 (above panel)
