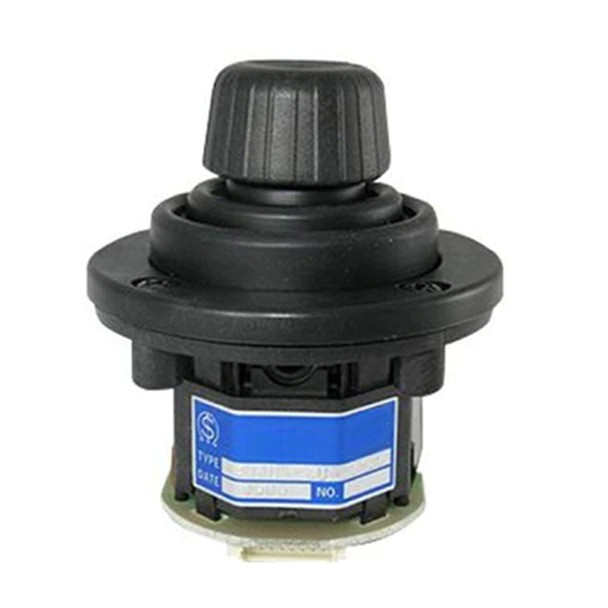

JH30H-ZU-3SR3G

Tripe axis, low profile, industrial joystick. Hall effect potentiometer; 0.5V to 4.5V output per axis. 5V supply voltage. IP65 rated (above panel). High EMC/ESD durability. Dual (redundant) output is optional.
SKU:
732111

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 5 - 9 and pay only $164.00 each
$173.00

Pdf Download PDF Ask A Question

Specifications

Attribute Value
Series / Type JH30H - Hall Effect Joystick
Number of Axis Triple axis
Handle Deflection X & Y Axis: ±15º (30º overall) / Z Axis: ±30º (60º overall)
Spring Return to Center Yes
Return to Center Accuracy 50% ±5%
Supply Voltage 5VDC ±10%
Output Voltage 0.5 - 4.5V per axis, single output (dual output optional)
Output Voltage @ Center 2.5V
Load Resistance 10k ohm (minimum)
Operating Temperature -20ºC to +60ºC
Life Expectancy >1,000,000 Random Operations
Mounting Above panel
IP Rating IP54
Mating Connector Included (300mm wire length, color coded and labelled)


Main Features

* Triple axis - "Z" axis twist knob

* Low profile

* Hall effect potentiometer

* 0.5V - 4.5V output

* Spring return to center

* High resolution

* 1,000,000+ operations life

Customization

* Without rubber boot

* Dual redundant output

Applications

* Material handling equipment

* Hand held control devices

* Electric lift trucks

* Construction equipment

* Instrumentation

* Input device for automation purposes
