JH60C-4U-4S3R4GP

SKU:
742113
Condition:
New

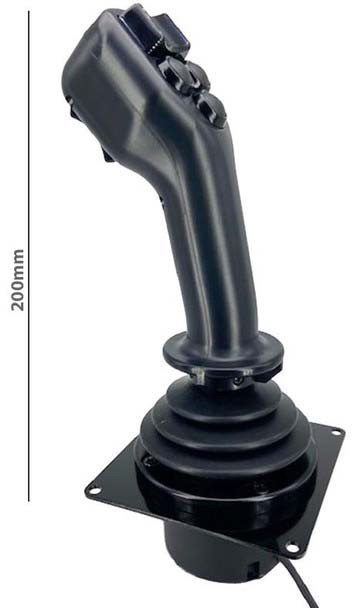

  • JCH60C-4U-4S3R4GP - Hall Effect Joystick - Multi Function
  • 3 momentary push-button switches / rocker potentiometer
  • Vertical rocker potentiometer
  • Custom handle arrangements. Please contact us.
$1,058.00

Specifications

Attribute Value
Series / Type JCH60C - Hall Effect Joystick - Multi Function
Number of Axis Quad
X / Y Axis Handle Deflection ±20º (40º overall)
X / Y Axis Handle Operating Pattern Type 'U' (see pdf)
Z1 Axis Lever Deflection (3rd axis) ±15º (30º overall) - rocker style - front side
Z2 Axis Lever Deflection (4th axis) ±15º (30º overall) - rocker style - rear side / vertical
Supply Voltage 5VDC ±10%
Output Voltage 0.5V - 4.5V (per axis)
Spring Return to Center Yes
Return to Center Accuracy ±50% ±1.5%
Pushbutton on Handle Face Yes - 3 pushbuttons (momentary) - Black color
Pushbutton Rating 50V DC / 100mA (500,000 operations)
Trigger Switch (Dead Man Switch) No
Trigger Switch Rating n/a
Operating Temperature -20ºC to +65ºC
Rubber Boot Yes
Mounting Plate Yes
X / Y Axis Mechanical Life Expectancy >5,000,000 Random Operations
EMS Durability 100V/m (80MHz~1GHz 1kHz sine-wave 80% AM modulation)
ESD Durability ±8kV contact - ±15kV aerial discharge (based on IEC61000-4-2)
Mounting Above panel with mounting plate
IP Rating IP40
