Long life, high resolution rotary potentiometers

Single-turn conductive plastic potentiometers in a variety of sizes and measuring angles. Available in bushing mount (panel mount) or servo mount (ball bearings) or hollow shaft (through shaft).

Conductive plastic potentiometers offer inherently high ratings for long life, high resolution, temperature stability and low noise.

At P3 America you’ll find a professional range of single-turn conductive plastic potentiometers in a variety of sizes and measuring angles. These high-resolution potentiometers are widely used in industrial applications such as industrial automation, mobile machinery, medical devices, control panels, robotics, and many other applications where precise input or feedback is required.

Each potentiometer is manufactured in accordance with ISO9001 certification standards and meets or exceeds the standards for potentiometers in accordance with IEC 60393 and/or VRCI-P-100A.

  • 640P Series
    Choose Options

    640P Series

    Direct replacement for discontinued Honeywell 640 series thru-shaft potentiometer.
    $35.00
    Short Description --- Specifications Attribute Value Series / Type 640P Series / Thru-Shaft Potentiometer Electrical Angle 90º, 180º, 270º 330º or customer specified Mechanical Angle Same as electrical...
    $35.00
    Choose Options
  • NP24HS / Single Turn Conductive Plastic Potentiometer
    Choose Options

    NP24HS Series

    Hollow shaft. 340º measuring angle. Conductive plastic. 24mm housing diameter. 2% linearity. 6mm shaft acceptance (5.5mm flat). Mounting ring.
    $12.00
    Short Description --- Specifications Attribute Value Series / Type NP24HS / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Sleeve Resistance...
    $12.00
    Choose Options
  • RH24PC Hollow Shaft Potentiometer
    Choose Options

    RH24PC Series

    340º electrical measuring angle. Continuous rotation. Through hole (hollow shaft). Precision conductive plastic potentiometer. 5 million turns life. 24mm housing diameter. Shaft acceptance diameter is 6mm with a 5mm flat. IP 40.
    $15.00
    Short Description --- Specifications Attribute Value Series / Type RH24PC Series / Hollow Shaft (through shaft)  Potentiometer Electrical Angle 340º Mechanical Angle 360º...
    $15.00
    Choose Options
  • RH24PC Precision Hollow Shaft Potentiometer
    Choose Options

    RH24PC (110mm) Series

    340º electrical measuring angle. Continuous rotation. Through hole (hollow shaft). 110mm wire leads. Precision conductive plastic potentiometer. 5 million turns life. 24mm housing diameter. Shaft acceptance diameter is 6mm with a 5mm flat. IP 40.
    $16.00
    Short Description --- Specifications Attribute Value Series / Type RH24PC Series / Hollow Shaft (through shaft)  Potentiometer Electrical Angle 340º Mechanical Angle 360º...
    $16.00
    Choose Options
  • NP32HS Series
    Choose Options

    NP32HS Series

    Hollow shaft. 340º measuring angle. Conductive plastic. 32mm housing diameter. 2% linearity. 8mm shaft acceptance (7.5mm flat). Spring shim.
    $15.00 - $18.00
    Short Description --- Specifications Attribute Value Series / Type NP32HS / Hollow shaft conductive plastic potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Mounting / Bearing Hollow shaft...
    $15.00 - $18.00
    Choose Options
  • STC12 Series
    Choose Options

    STC12 Series

    300º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 13mm housing diameter. 3mm shaft diameter. 20mm shaft length (FMS). M6 x 0.75 bushing (sleeve bearings). IP40
    $47.00 - $61.00
    Short Description --- Specifications Attribute Value Series / Type STC12 / Single Turn Conductive Plastic Potentiometer Electrical Angle 300º Mechanical Angle STC12: 360º (continuous) / STC12S 300º (mechanical...
    $47.00 - $61.00
    Choose Options
  • R22P Series Precision Conductive Plastic Potentiometer
    R22P Single Turn Conductive Plastic Potentiometer
    Choose Options

    R22P Series

    340º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 22mm housing diameter. 1/4" shaft diameter. 22mm shaft length (FMS). 3/8 x 32 bushing (sleeve bearings). Metal housing. IP40
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R22P / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle R22PC: 360º (continuous) / R22P 340º (mechanical...
    $16.00
    Choose Options
  • R23P Single Turn Conductive Plastic Potentiometer
    R23P Conductive Plastic Potentiometer
    Choose Options

    R23P Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 2% linearity. 1/4" shaft diameter.
    $15.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $15.00
    Choose Options
  • R23P / Single Turn Conductive Plastic Potentiometer
    Add to Cart

    R23P SRCWT R10K

    IP65 sealing. 320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 10K ohms. 2% linearity. 1/4" shaft diameter.
    $24.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $24.00
    Add to Cart
  • STC22ES Series
    Choose Options

    STC22ES Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 10 million turns life. 1% linearity. 1/4" shaft diameter.
    $26.00 - $71.00
    Short Description --- Specifications Attribute Value Series / Type STC22ES / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 320º (mechanical end...
    $26.00 - $71.00
    Choose Options
  • STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled

    STCOF30 R10K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 285º measuring angle (continuous, without end stop). Metal housing. Precision conductive plastic potentiometer. 10k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $123.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $123.00
  • P3 America Oil Filled Single Turn Conductive Plastic Potentiometer
    Add to Cart

    STCOF30S R5K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 280º measuring angle (with mechanical end stop). Metal housing. Precision conductive plastic potentiometer. 5k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $159.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30S / Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 310º (mechanical end...
    $159.00
    Add to Cart
  • STC12S Precision Potentiometer
    Choose Options

    STCS12 Series

    300º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 10,000,000 turns life. 13mm housing diameter. 3mm shaft diameter. 11.5mm shaft length (FMS). Metal housing. IP40
    $66.00
    Short Description --- Specifications Attribute Value Series / Type STCS12 / Single Turn Conductive Plastic Potentiometer - Servo Mount Electrical Angle 300º Mechanical Angle 360º (continuous...
    $66.00
    Choose Options
  • STCS22A / Single Turn Conductive Plastic Potentiometer

    STCS22A Series

    320º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 20,000,000 turns life. 22mm housing diameter. 1/4" shaft diameter. 11.5mm shaft length (FMS). Metal housing. IP40
    $63.00
    Short Description --- Specifications Attribute Value Series / Type STCS22A Series - Precision Conductive Plastic Potentiometer - Servo Mount Electrical Angle 320º Mechanical Angle 360º (continuous) Bearing Ball...
    $63.00

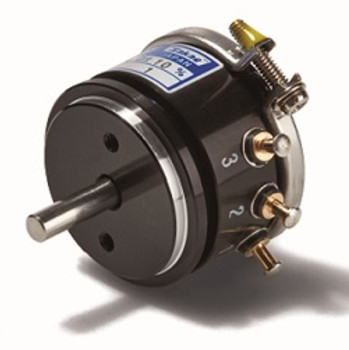

  • STCS22 / Single Turn Conductive Plastic Potentiometer
    Choose Options

    STCS22 Series

    320º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 22mm housing diameter. 3mm shaft diameter. Metal housing. IP40
    $109.00 - $119.00
    Short Description --- Specifications Attribute Value Series / Type STCS22 / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 360º (continuous) Bearing Ball...
    $109.00 - $119.00
    Choose Options
  • P3 America sine cosine potentiometer

    STCSC22 Series

    Sine cosine. Conductive plastic element. 2% conformity tolerance. Servo mount.
    $198.00
    Short Description --- Specifications Attribute Value Series / Type STCSC22 / Sine Cosine Potentiometer Electrical Angle 360º Mounting / Bearing Servo Mount / Ball Bearings Resistance Value 500, 1k, 2k, 5k, 10k, 20k,...
    $198.00
  • STCS30 / Single Turn Conductive Plastic Potentiometer

    STCS30 R1K ±10% L0.2%

    340º measuring angle. Conductive plastic element. 1K ohms. 0.2% linearity. 3mm shaft diameter.
    $127.00
    Short Description --- Specifications Attribute Value Series / Type STCS30 / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Ball...
    $127.00
  • STCS40 / Single Turn Conductive Plastic Potentiometer
    Choose Options

    STCS40 Series

    340º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 37mm housing diameter. 6mm shaft diameter. Metal housing. IP40
    $147.00 - $153.00
    Short Description --- Specifications Attribute Value Series / Type STCS40 / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Ball...
    $147.00 - $153.00
    Choose Options
  • STCS40 / Dual Gang Single Turn Conductive Plastic Potentiometer

    STCS40 R5K/5K ±5% L0.1%

    Dual gang. 340º measuring angle. Conductive plastic element. 5K/5K ohms. 0.1% linearity. 6mm shaft diameter.
    $306.00
    Short Description --- Specifications Attribute Value Series / Type STCS40 / Dual Gang Single Turn Conductive Plastic Potentiometer Electrical Angle 340º / 340º Mechanical Angle 360º...
    $306.00
  • STCS50 Series
    Choose Options

    STCS50 Series

    350º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 50mm housing diameter. 6mm shaft diameter. Metal housing. IP40
    $198.00
    Short Description --- Specifications Attribute Value Series / Type STCS50 / Single Turn Conductive Plastic Potentiometer Electrical Angle 350º Mechanical Angle 360º (continuous) Bearing Ball...
    $198.00
    Choose Options
  • STCSC50 R5K ±15% L0.5%

    STCSC50 R5K ±15% L0.5%

    Sine cosine. Conductive plastic element. 0.5% conformity tolerance. 5K ohms. Servo mount.
    $240.00
    Short Description --- Specifications Attribute Value Series / Type STCSC50 / Sine Cosine Potentiometer Electrical Angle 360º Mounting / Bearing Servo Mount / Ball Bearings Resistance Value 5K ohms...
    $240.00

Industrial Grade Precision

Precision potentiometers, in comparison to the lowest cost potentiometers, are characterized by tight mechanical and electrical tolerances, low noise and high repeatability. Conductive plastic potentiometers are further characterized by very high life cycles and essentially infinite resolution.

Customization of mechanical features, such as shaft length and diameter is not uncommon and welcome. Customization of the electrical measuring angle is also possible to better match the application. Environmental sealing options exist for sustained operations in harsh environments.

Partner with P3 America for Quality and Expertise

Choosing the right motion control technology for your application doesn’t have to be difficult. Make an informed decision by turning to P3 America for expertise. We offer many years of experience in providing applications engineering, rapid prototyping, OEM support, and distribution support.

Contact a P3 America sales engineer for more information on the applications for conductive plastic pots and for custom solutions. Our technical knowledge covers a comprehensive range of industries, so we are well-equipped to help you make the right decision.
