Specifications
| Attribute | Value |

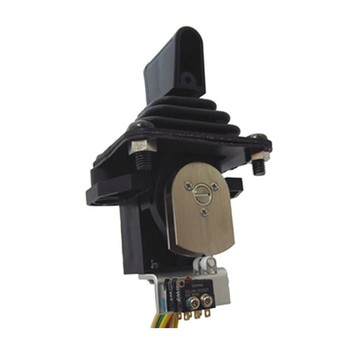

| Series / Type | JL30 - Potentiometer Joystick |
| Number of Axis | Single |
| Handle Deflection | ±20º (40º overall) |
| Handle Operating Pattern | Single axis |
| Handle Shape | Straight |
| Spring Return to Center | Yes |
| Return to Center Accuracy | ±50% ±5% |
| Resistance Value | 10k ohms |
| Pushbutton on Handle | No |
| Pushbutton Rating | n/a |
| Center Detect Micro-Switch | No |
| Directional Micro-Switches | No |
| Micro-Switch Rating | n/a |
| Operating Temperature | -20ºC to +60ºC |
| Rubber Boot | Yes |
| Mounting Plate | No |
| Life Expectancy | >2,000,000 Random Operations |
| Mounting | Below panel |
| IP Rating | IP65 |
| Output Cable | 300mm length (AWG20) |
Main Features
* Compact single axis joystick
* Precision 10K ohm potentiometer
* Spring return to center
* Paddle shaped handle
* IP65
* 2,000,000+ operations life
Customization
* Handle shapes
* With out rubber boot
* With center tap potentiometer
* With directional micro-switches ('ON' @ ±5º from center)
* Spring return to end
* Hall effect version (JL30H series)
Applications
* Material handling equipment
* Hand held control devices
* Electric lift trucks
* Construction equipment
* Marine controls
* Input device for automation purposes
