Specifications
| Attribute | Value |

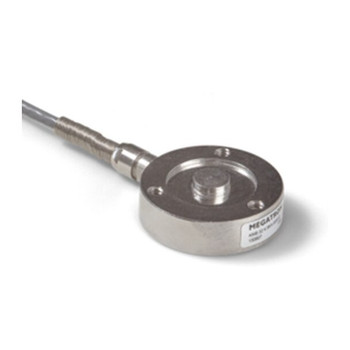

| Series / Type | Button Force Load Cell (Compression) |
| Capacity (Rated Force) | 24,729 lb. (110kN) |
| Rated Output | 2.0 mV/V nominal |
| Relative Repeatability Error | ≤ 0.5% of rated output |
| Relative Reversibility Error | ≤ 0.5% of rated output |
| Relative Linearity Error | ≤ 0.5% of rated output |
| Relative Deviation of Zero Signal | ≤ 0.1% of rated output |
| Rated Displacement | ≤ 0.15mm |
| Input Resistance | 700 ±50Ω |
| Output Resistance | 700 ±50Ω |
| Insulation Resistance | ≥ 500 MOhm @ 50 VDC |
| Maximum Operating Force | ≤ 150% of Capacity |
| Rated Range of Excitation Voltage | ≤ 10 VDC/VAC |
| Operating Range of Excitation Voltage | ≤ 20 VDC/VAC |
| Rated Temperature Range | -50ºC to +90ºC |
| Operating Temperature Range | 0ºC to +70ºC |
| Temperature Effect on Output Value | ≤ 0.36% of rated output / 10K |
| Temperature Effect on Zero Signal | ≤ 0.18% of rated output / 10K |
| Creep Under Load | ≤ 0.5% of rated output |
| Cable Dimension | 4 x AWG26 (cable shielded) |
| Body Material | Stainless steel |
| Protection Grade | IP64 |
| Mass | 0.9 lb. |
