KM1403 K 100N

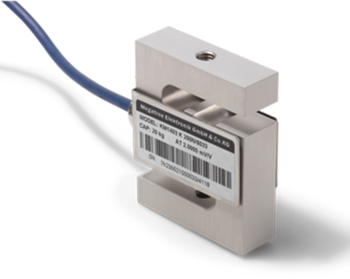

100N (22 lb.) capacity. The load cell series KM1403 has a robust construction with protection class IP54. The force is introduced via the M8 internal thread. These force sensors are ideal for tensile forces. The DMS measuring principle (Wheatstone DMS full bridge) for these force transducers has proven itself over decades and guarantees a long service life. The force sensors are offered without integrated amplifier electronics, but can be combined with external measuring amplifiers and displays. For load cells with integrated signal conditioner, please see our 'KT' series.
SKU:
134279
$198.00

About 5 weeks delivery if not in stock.

Specifications

Attribute Value
Series / Type S-Beam Force Load Cell (Tension or Compression)
Capacity (Rated Force) 22 lb. (100N)
Rated Output 2.0 mV/V nominal
Relative Repeatability Error ≤ 0.03% of rated output
Relative Reversibility Error ≤ 0.03% of rated output
Relative Linearity Error ≤ 0.03% of rated output
Relative Deviation of Zero Signal ≤ 3% of rated output
Rated Displacement ≤ 0.3 mm
Input Resistance 410 ±5Ω
Output Resistance 350 ±3Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 150% of Capacity
Rated Range of Excitation Voltage ≤ 10 VDC/VAC
Operating Range of Excitation Voltage ≤ 15 VDC/VAC
Rated Temperature Range -10ºC to +70ºC
Operating Temperature Range -10ºC to +40ºC
Temperature Effect on Output Value ≤ 0.02% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.02% of rated output / 10K
Creep Under Load ≤ 0.03% of rated output
Cable Dimension 4 x AWG24  (Ø4.8mm)
Body Material Aluminum alloy
Protection Grade IP54
Mass 0.6 lb.
