KMC230 K 500KN

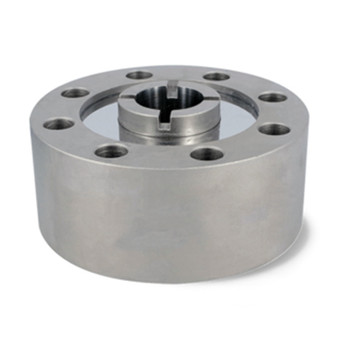

112,404 lb. (500kN) capacity. The KMC230 series of force transducers are easy-to-install load cells (called pancakes or compression discs) with IP66 protection. The force is introduced via the M40 thread. The measuring body is made of steel and protected against corrosion (nickel-plated). Despite the high forces, the force sensor has a low overall height of 60 mm. The force transducer is delivered calibrated including measurement protocol and has a 6 meter long connection cable. The sensor is often used in presses, testing machines, truck scales and large container and hopper scales.
SKU:
134531
$4,118.00

About 5 weeks delivery if not in stock.

Specifications

Attribute Value
Series / Type Button (Pancake) Force Load Cell (Compression)
Capacity (Rated Force) 112,404 lb. (500kN)
Rated Output 2.0 mV/V nominal
Relative Repeatability Error ≤ 0.1% of rated output
Relative Reversibility Error ≤ 0.1% of rated output
Relative Linearity Error ≤ 0.1% of rated output
Relative Deviation of Zero Signal ≤ 1% of rated output
Rated Displacement ≤ 0.5mm
Input Resistance 775±20Ω
Output Resistance 700±5Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 150% of Capacity
Rated Range of Excitation Voltage  10 VDC/VAC
Operating Range of Excitation Voltage ≤ 15 VDC/VAC
Rated Temperature Range -10ºC to +70ºC
Operating Temperature Range -10ºC to +40ºC
Temperature Effect on Output Value ≤ 0.02% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.02% of rated output / 10K
Creep Under Load ≤ 0.1% of rated output
Cable Dimension 4 x AWG24, PTFE isolated, shielded
Body Material Alloy steel
Protection Grade IP66
Mass 2 lb.
