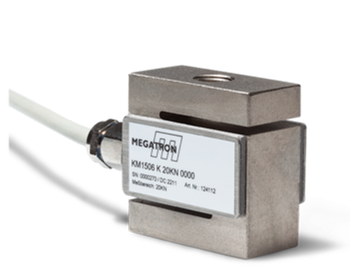

KM1506 K 15KN

15 kN (3372 lb.) capacity. The load cell series KM1506 has a robust construction with protection class IP65. Maximum operating force up to 200% rated capacity. The force is introduced via the M10 internal thread. These force sensors are ideal for tensile forces. The DMS measuring principle (Wheatstone DMS full bridge) for these force transducers has proven itself over decades and guarantees a long service life. The force sensors are offered without integrated amplifier electronics, but can be combined with external measuring amplifiers and displays. For load cells with integrated signal conditioner, please see our 'KT' series.
SKU:
124111
$255.00

Manufactured by Megatron

Please call us at 512-337-7336 to order.

Specifications

Attribute Value
Series / Type S-Beam Force Load Cell (Tension or Compression)
Capacity (Rated Force) 3372 lb. (15kN)
Rated Output 2.0 mV/V nominal
Relative Repeatability Error ≤ 0.05% of rated output
Relative Reversibility Error ≤ 0.05% of rated output
Relative Linearity Error ≤ 0.05% of rated output
Relative Deviation of Zero Signal ≤ 0.1% of rated output
Rated Displacement ≤ 0.2mm @ 2kN..5kN / ≤ 0.3mm @ 10kN / ≤ 0.6mm @ 15kN..20kN
Input Resistance 387 ±20Ω
Output Resistance 350 ±3Ω
Insulation Resistance ≥ 500 MOhm @ 50 VDC
Maximum Operating Force ≤ 200% of Capacity
Rated Range of Excitation Voltage ≤ 10 VDC/VAC
Operating Range of Excitation Voltage ≤ 15 VDC/VAC
Rated Temperature Range -10ºC to +70ºC
Operating Temperature Range -10ºC to +40ºC
Temperature Effect on Output Value ≤ 0.02% of rated output / 10K
Temperature Effect on Zero Signal ≤ 0.02% of rated output / 10K
Creep Under Load ≤ 0.05% of rated output
Cable Dimension 4 x AWG26  (Ø4.6mm)
Body Material Stainless steel
Protection Grade IP65
Mass 0.6 lb.
