LPC Series

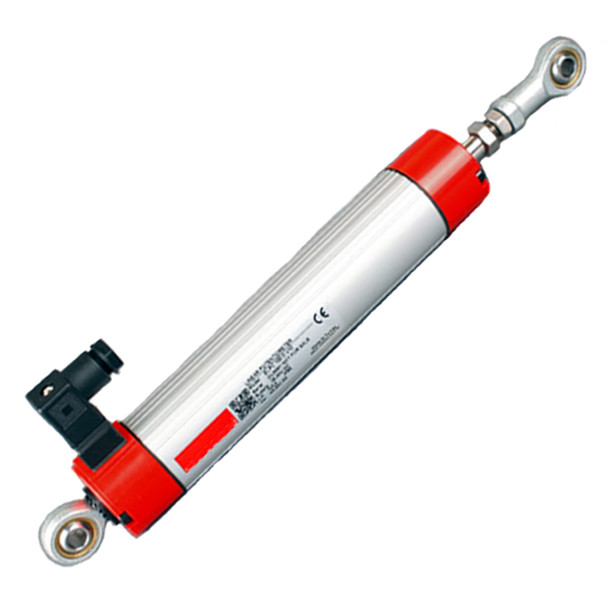

Industrial precision linear motion potentiometer (displacement transducer). Dual rod end (heim) bearings. High resolution conductive plastic element. 75 million cycle life. 35mm diameter aluminum housing. IP65. Available in measuring lengths (stroke lengths) of 50mm (max) up to 800mm (max).
SKU:
Select an option below
$155.00 - $292.00

About 5 weeks delivery if not in stock.

Pdf Download PDF Cad Download CAD

Specifications

Attribute Value
Type Rod end bearings. Heavy duty. IP65.
Measuring Distance (Stroke Lengths) 50 up to 800 mm
Spring Return No
Element Conductive plastic
Resistance Value 5k ohms (<650mm), 10k ohms (650mm to 800mm)
Linearity ±0.5% (<75mm), ±0.2% (75-130mm), ±0.1% (130-200mm), ±0.05% (>200mm)
Resolution Infinite
Max Supply Voltage 28 VDC
Operating Temperature -20ºC to +80ºC
Life Expectancy >75,000,000 Reciprocating motions
Body Dimensions Ø38 (see pdf datasheet for lengths)
Shaft Diameter 10 mm
Threaded Shaft End n/a
Mounting Rod End Bearings
Mating Connector Type C2 (included)
IP Rating IP65

Main Features

* 35mm diameter ruggedized aluminum housing

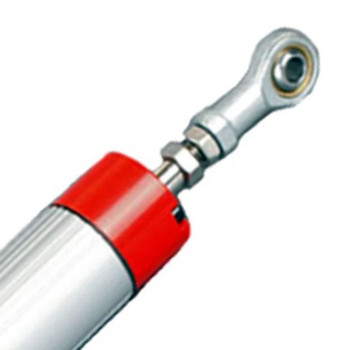

* Dual rod end bearings (Heim bearings)

* Precision linearity

* Long life

* IP65 environmental rating

Customization

* Non standard (fractional) measuring stroke lengths

* Improved linearity and/or resistance tolerances

* Customer specified pre-wiring / connectorization

Applications

Optimized to be used as a feedback sensor (closed loop) in industrial applications.

* Agriculture equipment

* Off road machinery

* Heavy equipment

* Manufacturing automation

* Process control automation

* Aerospace

* Suspension monitoring systems

* Hydraulic machinery
