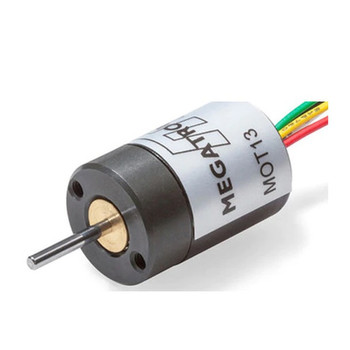

MOT13 4000 5 BZ K

SKU:
130093

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 10 - 49 and pay only $1,165.00 each
Buy 50 - 99 and pay only $979.00 each
$1,276.00

Please call us at 512-337-7336 to order.

Pdf Data Sheet Cad CAD Files

Specifications

Attribute Value
Series / Type MOT13 Series / Optical Encoder - Incremental Output
Resolution 4000 ppr
Channels A, B, Z
Output Electronics Open Collector
Supply Voltage 5 VDC ±10%
Current Consumption 40 mA max. (no load)
Frequency Limit 100 khz
Max. RPM 6000
Mounting Threaded screw holes
Operating Temperature -10ºC to +70ºC
Body Diameter 13 mm
Shaft Diameter 1.5 mm
IP Rating IP50





MOT13 Series / Optical Encoder - Incremental Output

MOT13 4000 5 BZ K

$1,276.00
