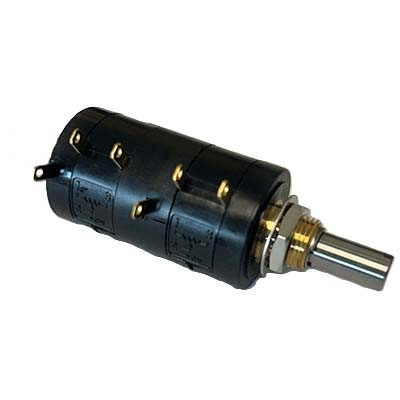

MT22 Multi-Gang Series

Multi ganged precision wire-wound potentiometer. Multi-turn: 3, 5 and 10 turn models. Up to 10 gangs. High resolution. Up to 1,000,000 turns life. Stainless steel shaft - 1/4" (6.35mm) diameter. Industrial grade. Wide range of options. Suitable as a panel controller or feedback sensor in industrial applications.
SKU:
MT22-10 R1K/1K ±5% L0.25% (211117)
$68.00
Pdf Data Sheet

Specifications

Attribute Value
Series / Type MT22 / Multi-Ganged / Multi-Turn Potentiometer - Wire-Wound
# of Gangs
 Up to 10
Mounting / Bearing Bushing Mount / Sleeve Bearing
Number of Turns 1080º (3 Turns) / 1800º (5 Turns) / 3600º (10 Turns)
Resistance Values 100, 200, 500, 1k, 2k, 5k, 10k, 20k, 50k, 100k ohms ±5%
Linearity 0.5% (3 & 5 turns) / 0.25% (10 turns)
Resolution Varies with resistance value (see pdf datasheet)
Operating Temperature -55ºC to +105ºC
Power Rating 1.0W (3 & 5 Turns) / 2.0W (10 Turns)
Life Expectancy 500,000 Turns Life (3 & 5 Turn Models) / 1,000,000 Turns Life  (10 Turn Models)
Body Diameter 22 mm
Shaft Diameter 6.35 mm (1/4")
Shaft Length 20.6 mm
IP Rating IP40
MT22 / Dual Ganged Wire-Wound Multi-Turn Potentiometer

MT22 Multi-Gang Series

$68.00
Select Variant
