ERTL Series

Precision displacement transducer with built in signal conditioner providing 0-10VDC (voltage output), 4-20mA or 0-20mA (current output). Threaded shaft end. Essentially infinite resolution. Rugged 33mm x 33mm aluminum housing. 75 million cycle life. Measuring lengths (stroke lengths) of 30mm (max) up to 1000mm (max). IP65.
SKU:
Select an option below
$129.00 - $160.00

About 5 weeks delivery if not in stock.

Pdf Download PDF

Specifications

Attribute Value
Type Internal Signal Conditioner. IP65.
Measuring Distance (Stroke Length) 30 mm up to 1000 mm
Spring Return No
Output Signals 0-10VDC (voltage output), 4-20mA or 0-20mA (current output)
Supply Voltage 15 - 30 VDC
Linearity ±0.5% (<75mm), ±0.2% (75-130mm), ±0.1% (130-200mm), ±0.05% (>200mm)
Resolution Infinite
Max Supply Voltage 30 VDC
Operating Temperature -20ºC to +80ºC
Life Expectancy >75,000,000 Reciprocating motions
Body Dimensions 33Wx 33H (see pdf datasheet for length)
Shaft Diameter 6 mm
Threaded Shaft End Yes - M6
Mounting Adjustable clamps (included)
Electrical Connection Female 4-pole connector (included)
IP Rating IP65

Main Features

* Threaded shaft end

* 33mm x 33mm ruggedized aluminum housing

* Precision linearity

* Long life

* IP65 environmental rating

Customization

* Non standard (fractional) measuring stroke lengths

* Customer specified pre-wiring / connectorization

Applications

Optimized to be used as a feedback sensor (closed loop) in industrial applications.

* Heavy equipment

* Factory automation systems

* Process control automation

* Hydraulic machinery

* Test stands

Related Products

Cable version
Connector version
Choose Options

SLPT Series

10mm up to 400mm stroke lengths. Precision linear motion potentiometer. Threaded shaft end. Ø18mm aluminum housing. 75 million cycle life. IP65.
$105.00 - $181.00
Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Type Industrial. Precision. IP65. Measuring Distance (Stroke Lengths) 10 mm up to...
$105.00 - $181.00
Choose Options

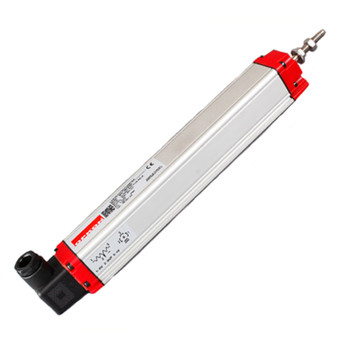

RTL Series - Linear Motion Potentiometer
