Precision Contactless Potentiometers

Precision Contactless Potentiometers

Magnetic rotary encoders for absolute angle measurement

Hall Effect and Inductive sensors (contactless potentiometers) are precise components being used more and more to replace the traditional ‘sliding wiper’ wire-wound or conductive plastic potentiometer. Software, instead of hardware, combined with state of the art semiconductors provide for low noise, high accuracy measurement of any angle up to 360º.

Ideally suited for position control feedback applications and any conversion of a rotary movement into an electrical analog signal. Commonly used in heavy equipment, medical equipment, marine equipment, mobile machinery and many other industrial applications.

  • Sensor housing, mounting ring and push on magnet holder

    MAB12AH

    Miniature kit encoder in Ø12.7 mm housing with PWM or analog output. Suitable for shafts from Ø2 mm…6.35 mm. Supply voltage 5 VDC.
    $74.00 - $86.00
    Short Description --- Specifications Attribute Value Series / Type MAB12AH / Hall Effect Potentiometer Electrical Angle 360º  (clockwise (CW) or counter clockwise (CCW) Mechanical Angle 360º...
    $74.00 - $86.00
  • ERCK 2410 360 / Hall Effect Potentiometer
    Choose Options

    ERCK Series

    True 360º measuring angle (or any fraction). Supplied magnet attaches to your shaft. Housing fits over magnet. 0 - 5 V, 0 - 10V, 4 - 20 mA outputs. 22mm housing diameter. IP65.
    $35.00 - $57.00
    Short Description --- Specifications Attribute Value Series / Type ERCK / Hall Effect Analog Kit Encoder Electrical Angle 360º (or any fraction) Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V...
    $35.00 - $57.00
    Choose Options
  • MAB22AH / Hall Effect Potentiometer

    MAB22AH 12HS 0505

    Supplied magnet attaches to your shaft end. Housing fits over magnet. 360º measuring angle. 12 bit resolution. 0 - 5V output. IP67
    $85.00
    Short Description --- Specifications Attribute Value Series / Type MAB22AH / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $85.00
  • HTA25K Series
    HTA25K Series

    HTA25K Series

    Kit encoder. Hall effect. Analog output. Ø25 mm metal housing. Absolute analog voltage or milli-amp output. 12 bit resolution. Flange mount. IP65.
    Short Description Analog Hall Effect Rotary Kit Encoder Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25KX) Analog: Voltage/current output Field programmable single turn,...
  • ERCF 1 0505 360 Z / Hall Effect Potentiometer
    Choose Options

    ERCF Series

    True 360º measuring angle (or any fraction). Flange mount. 0 - 5V, 0 - 10V, 4 - 20 mA outputs. 12 bit resolution. 6mm shaft diameter. 0.5% linearity. IP65.
    $46.00 - $60.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer - Flange Mount Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V (see pdf,...
    $46.00 - $60.00
    Choose Options
  • STHE12
    Add to Cart

    STHE12

    Hall effect precision potentiometer. Ø13 mm metal housing. 90º measuring angle. 0.5 to 4.5V output (5V supply). Low power consumption. Wide operating temperature. Long life.
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE12 / Hall Effect Potentiometer Electrical Angle 90º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $74.00
    Add to Cart

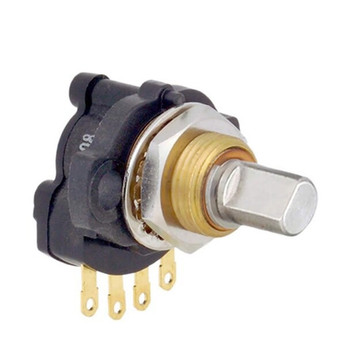

  • STHE18 Hall Effect Potentiometer (Spade Terminals)
    STHE18L Hall Effect Potentiometer (150mm Lead Wires, AWG26)
    Choose Options

    STHE18 Series

    18mm diameter. 90º (±45º) measuring angle. 0.5 - 4.5V output. Bushing or flange mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE18 / Hall Effect Potentiometer Electrical Angle 90º (±45º) Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $74.00
    Choose Options
  • ERC 3 0505 360 / Hall Effect Potentiometer
    Choose Options

    ERC Series

    360º measuring angle. 22mm housing diameter. 0 - 5V, 0 - 10V or 4 - 20mA output options. 12 bit resolution. 1/4" shaft diameter. 0.5% linearity. IP65.
    $39.00 - $67.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer Electrical Angle 360º  (customer specified angle can be factory programmed) Mechanical Angle 360º is standard...
    $39.00 - $67.00
    Choose Options
  • STI22F Series
    Choose Options

    STI22F Series

    22mm diameter. 100º measuring angle. 0.5 - 4.5V output. Bushing mount. 4mm shaft diameter. 0.5% linearity. IP40 or IP65.
    $124.00 - $136.00
    Short Description --- Specifications Attribute Value Series / Type STI22F / Inductive Potentiometer - Contactless Electrical Angle Standard: 100º (±50º)  / Optional: 50º (±25º) up to 160º...
    $124.00 - $136.00
    Choose Options
  • STHE22 / Hall Effect Potentiometer
    STHE22 / Hall Effect Potentiometer

    STHE22-5

    22mm diameter. 360º measuring angle. 0.5 - 4.5V output. Bushing mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $96.00
    Short Description --- Specifications Attribute Value Series / Type STHE22 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $96.00
  • ETA25 Hall Effect Potentiometer
    Choose Options

    ETA25 Series

    360º measuring angle (or any fraction). 25mm housing diameter. Analog voltage or milli-amp output. 12 bit resolution. Reliable encoders with numerous electronic and mechanical options.
    $65.00 - $72.00
    Short Description --- Specifications Attribute Value Series / Type ETA25 / Hall Effect Potentiometer Electrical Angle 360º (any angle factory programmable, minimum 10º) Mechanical Angle Standard: 360º...
    $65.00 - $72.00
    Choose Options
  • ETA25PS 6x22 0505 LA / Hall Effect Potentiometer LA

    ETA25PS

    Measuring angle (up to 360º) and direction are dip switch selectable. 3.3V, 5V or 0...10V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ETA25PS / Hall Effect Potentiometer Electrical Angle Any Angle (min. 20º) up to 360º: Dip Switch Selectable Mechanical Angle 360º...
    $80.00
  • STHE30 / Hall Effect Potentiometer
    STHE30 / Hall Effect Potentiometer

    STHE30-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $129.00
  • STHE30 F/ Hall Effect Potentiometer
    STHE30 F/ Hall Effect Potentiometer

    STHE30F-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Flange or bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description 6 - 8 weeks delivery --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $129.00
  • STI22FS
    Choose Options

    STI22FS

    Precision inductive (contactless) potentiometer. 100º measuring angle. 22mm metal housing. Servo mount (ball bearings). Low torque, long life. Analog voltage output. IP40.
    $141.00 - $182.00
    Short Description --- Specifications Attribute Value Series / Type STI22FS / Inductive Potentiometer - Contactless Potentiometer Electrical Angle Standard: 100° • (Special: 50° ~ 160° possible, please consult...
    $141.00 - $182.00
    Choose Options
  • HTA25 Analog Encoder Axial connector
    HTA25 Analog Encoder Axial connector

    HTA25 Series

    Ø25 mm metal housing. Single-turn hall effect encoder. Absolute analog voltage or milli-amp output. 12 bit resolution. Servo mount (ball bearing). IP65S, IP67 or IP68. Customizable.
    $172.00
    Short Description Analog Hall Effect Encoder - Absolute Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25X) Analog: Voltage/current output Field programmable single turn,...
    $172.00
  • MAB28A / Hall Effect Potentiometer

    MAB28A 12 0505

    360º measuring angle. 0 - 5V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity. IP65.
    $152.00
    Short Description --- Specifications Attribute Value Series / Type MAB28A / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $152.00
  • SCH22 / Hall Effect Potentiometer - Sine Cosine

    SCH22

    Sine cosine. Hall effect. 0.8% conformity tolerance. Servo mount.
    $190.00
    Short Description --- Specifications Attribute Value Series / Type SCH22 / Hall Effect Potentiometer - Sine Cosine Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $190.00

Contactless Potentiometers are a Reliable Staple

At P3 America you’ll find a vast array of high-precision contactless potentiometers that are engineered to last. If you don’t find a suitable solution for your application readily available, we can work with you to engineer one. We offer the best product delivery times in the industry, so you’ll be up and running in no time. These pots are robust, cost-effective and reliably operate for a long time, so you get a great return on your investment.

Make the Right Choice with P3 America

Researching the right motion control technology can be time-consuming and choosing the wrong technology can cost you valuable time and money. The engineers at P3 America are standing by to help you make the right choice the first time around. Our industry leaders offer decades of experience providing applications engineering, rapid prototyping, OEM support, and distribution support for clients all over the globe. We are always available to provide more information on the applications for contactless pots and for custom solutions.

Regardless of your industry, we are well-equipped to help you find answers. Be sure to ask about our volume-based discounts.
