IP65 Protection Grade (Sealed)

IP65 Protection Grade (Sealed)

Sealed potentiometers for wet or harsh environments.

Industrial grade potentiometers with much more precise electrical and mechanical tolerances, significantly increased lifespan, higher reliability and component quality than conventional low-cost potentiometers.

Sealed potentiometers feature an o-ring shaft seal protecting against water ingress. Terminals are sealed by use of cable output or epoxy sealing the base of the terminals.

For harsh environments like harmful salt, heavy moisture, organic gas, etc., our oil filled potentiometers are recommended. All metal housing and glass header terminals completely seal these heavy duty potentiometers. The internal element is sealed in an organic oil to wash away in particulates capable of migrating into the housing.

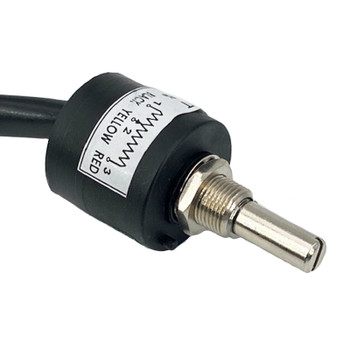

  • IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads
    IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads

    R25W-SRCWT Series

    270º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 25mm housing diameter. 1/4" (6.35mm) shaft diameter. 25mm shaft length (FMS). 3/8"-32 bushing (sleeve bearing). 12" cable length. IP65.
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R25W / Single Turn Wire-Wound Potentiometer Electrical Angle 270º Mechanical Angle 285º (mechanical end stops) Bearing Sleeve Resistance...
    $16.00
  • POD20 Series / Precision Wire-Wound Potentiometer

    POD20 MS 08 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 8mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00
  • POD20 MS 16  Series / Precision Wire-Wound Potentiometer

    POD20 MS 16 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 16mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00
  • STWOF30 / Single Turn Wire Wound Potentiometer

    STWOF30 R5K ±10% L2%

    285º measuring angle (continuous, without end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 10k ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $108.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30 / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $108.00
  • STWOF30S R10K ±10% L2%

    STWOF30S R10K ±10% L2%

    285º measuring angle (with mechanical end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 5K ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $145.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30S / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 300º (mechanical end...
    $145.00
  • R23P / Single Turn Conductive Plastic Potentiometer

    R23P SRCWT R10K

    IP65 sealing. 320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 5K ohms. 2% linearity. 1/4" shaft diameter.
    $24.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $24.00
  • STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled

    STCOF30 R10K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 285º measuring angle (continuous, without end stop). Metal housing. Precision conductive plastic potentiometer. 10k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $123.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $123.00
  • P3 America Oil Filled Single Turn Conductive Plastic Potentiometer

    STCOF30S R5K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 280º measuring angle (with mechanical end stop). Metal housing. Precision conductive plastic potentiometer. 5k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $159.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30S / Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 310º (mechanical end...
    $159.00
