LMC8 Series

Potentiometric Linear Transducer

Miniaturized precision linear motion potentiometer (displacement sensor). 8mm x 8mm housing. Through shaft (rear shaft). Essentially infinite resolution conductive plastic element. 20 million cycle life. Measuring lengths (stroke lengths) of 8 / 11 / 12 / 15 mm.
Select an option below
  • LMC8 Series
8mm, 11mm and 12mm stroke lengths
  • LMC8 Series
8mm, 11mm and 12mm stroke lengths
  • LMC8 Series
15mm stroke length
$35.00 - $50.00

 Manufactured by SAKAE


Attribute Value
Type Miniature. Through shaft. Precision.
Measuring Distance (Stroke Length) 8, 11, 12 and 15 mm
Spring Return No
Element Conductive plastic
Resistance Value Various (see Configurations above and pdf datasheet)
Linearity Various (see Configurations above and pdf datasheet)
Resolution Infinite
Power 0.2W (0.3W for 15mm stroke)
Operating Temperature -30ºC to +105ºC
Life Expectancy >20,000,000 Reciprocating motions
Body Dimensions 32 x 8 x 7 mm
Shaft Diameter 2 mm
Threaded Shaft End 15mm version (LMC8-15) has an M2 (P = 0.4) x 10mm threaded shaft end
Electrical Connection Wire leads (150mm length)
Mounting Through holes in body
IP Rating IP40

Main Features

* 8mm x 8mm housing

* Through shaft

* Precision linearity

* Long life

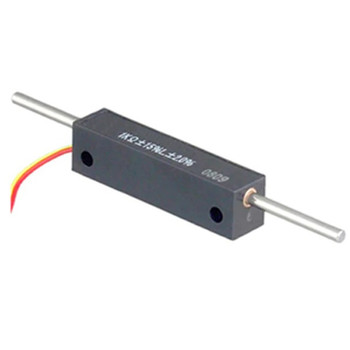

* With a shaft spring (see LMCR8 series)

* Shaft modifications

* Improved linearity and/or resistance tolerances

* Customer specified pre-wiring / connectorization


Optimized to be used as a feedback sensor (closed loop) in industrial applications.

* Confined space

* Factory automation

* Measuring equipment

* Medical equipment

* Process control automation

* Test stands

* Robotics

* Valve actuators
