Single Turn Hall Effect Potentiometers

Single Turn Hall Effect Potentiometers

Absolute Rotary Encoders with Analog Output

At P3 America you’ll find an extensive range of single-turn Hall Effect potentiometers to provide precise analog feedback for position and control applications. Based on magnetic Hall effect technology, these contactless sensors feature virtually unlimited life, low noise and excellent repeatability. Factory programming of customer specific measuring angles is available and some models are field programmable.

Thanks to the large selection of electrical output types, connections and mechanical designs, reliable, reproducible and accurate measurement data is provided for almost any application. The angular measuring range of an absolute encoder is of central importance. Single-turn encoders cover angular ranges up to 360 degrees and multi-turn encoders cover angles beyond that, up to 200 turns (72000 degrees).

They are common in mobile machinery applications from heavy equipment to warehouse lift trucks. They’re widely used in manufacturing automation processes, medical devices, camera positioning controls, wind direction devices, key making machines, and physical therapy equipment. You’ll also find them being employed in the Aerospace and Defense industries, vehicle joysticks, engine fuel control systems, remote piloted vehicle, actuators and many other applications.

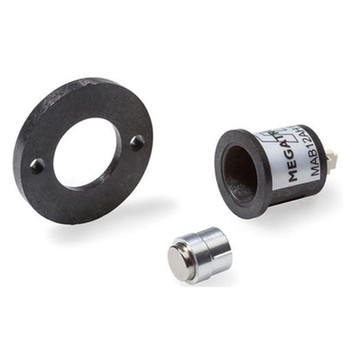

  • Sensor housing, mounting ring and push on magnet holder

    MAB12AH

    Miniature kit encoder in Ø12.7 mm housing with PWM or analog output. Suitable for shafts from Ø2 mm…6.35 mm. Supply voltage 5 VDC.
    $74.00 - $86.00
    Short Description --- Specifications Attribute Value Series / Type MAB12AH / Hall Effect Potentiometer Electrical Angle 360º  (clockwise (CW) or counter clockwise (CCW) Mechanical Angle 360º...
    $74.00 - $86.00
  • ERCK 2410 360 / Hall Effect Potentiometer

    ERCK Series

    True 360º measuring angle (or any fraction). Supplied magnet attaches to your shaft. Housing fits over magnet. 0 - 5 V, 0 - 10V, 4 - 20 mA outputs. 22mm housing diameter. IP65.
    $35.00 - $57.00
    Short Description --- Specifications Attribute Value Series / Type ERCK / Hall Effect Analog Kit Encoder Electrical Angle 360º (or any fraction) Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V...
    $35.00 - $57.00
  • MAB22AH / Hall Effect Potentiometer

    MAB22AH 12HS 0505

    Supplied magnet attaches to your shaft end. Housing fits over magnet. 360º measuring angle. 12 bit resolution. 0 - 5V output. IP67
    $85.00
    Short Description --- Specifications Attribute Value Series / Type MAB22AH / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $85.00
  • HTA25K  Series
    HTA25K  Series

    HTA25K Series

    Kit encoder. Hall effect. Analog output. Ø25 mm metal housing. Absolute analog voltage or milli-amp output. 12 bit resolution. Flange mount. IP65.
    Short Description Analog Hall Effect Rotary Kit Encoder Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25KX) Analog: Voltage/current output Field programmable single turn,...
  • ERCF 1 0505 360 Z / Hall Effect Potentiometer

    ERCF Series

    True 360º measuring angle (or any fraction). Flange mount. 0 - 5V, 0 - 10V, 4 - 20 mA outputs. 12 bit resolution. 6mm shaft diameter. 0.5% linearity. IP65.
    $46.00 - $60.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer - Flange Mount Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V (see pdf,...
    $46.00 - $60.00
  • STHE12

    STHE12

    Hall effect precision potentiometer. Ø13 mm metal housing. 90º measuring angle. 0.5 to 4.5V output (5V supply). Low power consumption. Wide operating temperature. Long life.
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE12 / Hall Effect Potentiometer Electrical Angle 90º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $74.00
  • STHE18 Hall Effect Potentiometer
(Spade Terminals)
    STHE18L Hall Effect Potentiometer
(150mm Lead Wires, AWG26)

    STHE18 Series

    18mm diameter. 90º (±45º) measuring angle. 0.5 - 4.5V output. Bushing or flange mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE18 / Hall Effect Potentiometer Electrical Angle 90º (±45º) Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $74.00
  • ERC 3 0505 360 / Hall Effect Potentiometer

    ERC Series

    360º measuring angle. 22mm housing diameter. 0 - 5V, 0 - 10V or 4 - 20mA output options. 12 bit resolution. 1/4" shaft diameter. 0.5% linearity. IP65.
    $39.00 - $67.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer Electrical Angle 360º  (customer specified angle can be factory programmed) Mechanical Angle 360º is standard...
    $39.00 - $67.00
  • STHE22 / Hall Effect Potentiometer
    STHE22 / Hall Effect Potentiometer

    STHE22-5

    22mm diameter. 360º measuring angle. 0.5 - 4.5V output. Bushing mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $96.00
    Short Description --- Specifications Attribute Value Series / Type STHE22 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $96.00
  • ETA25 Hall Effect Potentiometer

    ETA25 Series

    360º measuring angle (or any fraction). 25mm housing diameter. Analog voltage or milli-amp output. 12 bit resolution. Reliable encoders with numerous electronic and mechanical options.
    $65.00 - $72.00
    Short Description --- Specifications Attribute Value Series / Type ETA25 / Hall Effect Potentiometer Electrical Angle 360º (any angle factory programmable, minimum 10º) Mechanical Angle Standard: 360º...
    $65.00 - $72.00
  • ETA25PS 6x22 0505 LA / Hall Effect Potentiometer LA

    ETA25PS

    Measuring angle (up to 360º) and direction are dip switch selectable. 3.3V, 5V or 0...10V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ETA25PS / Hall Effect Potentiometer Electrical Angle Any Angle (min. 20º) up to 360º: Dip Switch Selectable Mechanical Angle 360º...
    $80.00
  • STHE30 / Hall Effect Potentiometer
    STHE30 / Hall Effect Potentiometer

    STHE30-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $129.00
  • STHE30 F/ Hall Effect Potentiometer
    STHE30 F/ Hall Effect Potentiometer

    STHE30F-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Flange or bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description 6 - 8 weeks delivery --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $129.00
  • HTA25 Analog Encoder
Axial connector
    HTA25 Analog Encoder
Axial connector

    HTA25 Series

    Ø25 mm metal housing. Single-turn hall effect encoder. Absolute analog voltage or milli-amp output. 12 bit resolution. Servo mount (ball bearing). IP65S, IP67 or IP68. Customizable.
    $172.00
    Short Description Analog Hall Effect Encoder - Absolute Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25X) Analog: Voltage/current output Field programmable single turn,...
    $172.00
  • MAB28A / Hall Effect Potentiometer

    MAB28A 12 0505

    360º measuring angle. 0 - 5V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity. IP65.
    $152.00
    Short Description --- Specifications Attribute Value Series / Type MAB28A / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $152.00
  • SCH22 / Hall Effect Potentiometer - Sine Cosine

    SCH22

    Sine cosine. Hall effect. 0.8% conformity tolerance. Servo mount.
    $190.00
    Short Description --- Specifications Attribute Value Series / Type SCH22 / Hall Effect Potentiometer - Sine Cosine Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $190.00

A Cost-Effective and Reliable Option

Single-turn Hall Effect potentiometers are one of the most commonly used position-sensing technologies available today. They are engineered for systems that require endurance, accuracy and long mechanical life. If you need a cost-effective potentiometer for sustained use in harsh environments, a Hall Effect pot is a great option. These highly precise, durable components can stand up to frequent changes in position in any application.

P3 America’s is Your Partner in Tech Solutions

You don’t have to guess which sensor technology is right for your application. By leaning on our industry experts, you can make sure you get it right the first time. P3 America is one of the few US-based specialists for single-turn Hall Effect potentiometers, single-turn transducers, and industrial joysticks. Our engineers are available to answer any questions you have regarding applying or customizing any product to your specific needs. You can get any product customized in large or small quantities. We’ve been doing rapid prototyping, application engineering, OEM support, and distribution support services for years and we can help you find cost-effective, durable solutions for your project.
