Bushing Mount (Sleeve Bearing)

Bushing Mount (Sleeve Bearing)

Single-turn conductive plastic and wire-wound potentiometers with threaded bushings for panel mounting.

Industrial grade potentiometers with much more precise electrical and mechanical tolerances, significantly increased lifespan, higher reliability and component quality than conventional low-cost potentiometers.

P3 America’s selection of precision panel mount potentiometers is second to none. Our precision potentiometers come in a variety of sizes and measuring angles (up to 355º). Our precision potentiometers are widely used in industrial applications such as industrial automation, mobile machinery, medical devices, control panels, robotics, and many other applications where precise input or feedback is required.

Potentiometers by P3America are manufactured in accordance with ISO9001 certification standards to meet or exceeds IEC 60393 and/or VRCI-P-100A standards.

  • R25W / Single Turn Wire-Wound Potentiometer

    R25W Series

    270º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 25mm housing diameter. 1/4" (6.35mm) shaft diameter. 25mm shaft length (FMS). 3/8"-32 bushing (sleeve bearing). IP54.
    $6.00
    Short Description --- Specifications Attribute Value Series / Type R25W / Single Turn Wire-Wound Potentiometer Electrical Angle 270º Mechanical Angle 285º (mechanical end stops) Bearing Sleeve Resistance...
    $6.00
  • IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads
    IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads

    R25W-SRCWT Series

    270º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 25mm housing diameter. 1/4" (6.35mm) shaft diameter. 25mm shaft length (FMS). 3/8"-32 bushing (sleeve bearing). 12" cable length. IP65.
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R25W / Single Turn Wire-Wound Potentiometer Electrical Angle 270º Mechanical Angle 285º (mechanical end stops) Bearing Sleeve Resistance...
    $16.00
  • POD20 Series / Precision Wire-Wound Potentiometer

    POD20 MS 08 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 8mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00
  • POD20 MS 16  Series / Precision Wire-Wound Potentiometer

    POD20 MS 16 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 16mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00

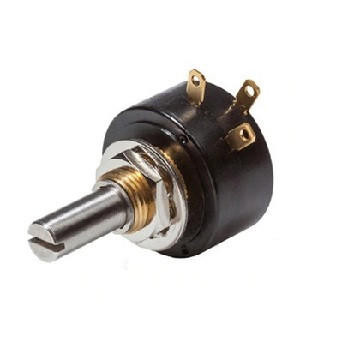

  • STW22E - Precision Wire Wound Potentiometer

    STW22E Series

    355º measuring angle (continuous rotation, without end stop). High precision wire-wound potentiometer. 500,000 turns life. 22mm housing diameter. 1/4" (6.35mm) shaft diameter. 22mm shaft length (FMS). 3/8" x 32 bushing (sleeve bearings). IP40
    $36.00
    Short Description --- Specifications Attribute Value Series / Type STW22E / Single Turn Wire Wound  Potentiometer Electrical Angle 355º Mechanical Angle 360º (continuous) Bearing Sleeve Resistance...
    $36.00
  • STW22E - Precision Wire Wound Potentiometer

    STW22ES Series

    320º measuring angle (with mechanical end stop). High precision wire-wound potentiometer. 500,000 turns life. 22mm housing diameter. 1/4" (6.35mm) shaft diameter. 22mm shaft length (FMS). 3/8" x 32 bushing (sleeve bearing). IP40.
    $46.00
    Short Description --- Specifications Attribute Value Series / Type STW22ES / Single Turn Wire Wound  Potentiometer Electrical Angle 320º Mechanical Angle 320º (with end stop) Bearing Sleeve Resistance...
    $46.00
  • STWOF30 / Single Turn Wire Wound Potentiometer

    STWOF30 R5K ±10% L2%

    285º measuring angle (continuous, without end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 10k ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $108.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30 / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $108.00
  • STWOF30S R10K ±10% L2%

    STWOF30S R10K ±10% L2%

    285º measuring angle (with mechanical end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 5K ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $145.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30S / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 300º (mechanical end...
    $145.00
  • STC12 Series

    STC12 Series

    300º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 13mm housing diameter. 3mm shaft diameter. 20mm shaft length (FMS). M6 x 0.75 bushing (sleeve bearings). IP40
    $47.00 - $61.00
    Short Description --- Specifications Attribute Value Series / Type STC12 / Single Turn Conductive Plastic Potentiometer Electrical Angle 300º Mechanical Angle STC12: 360º (continuous) / STC12S 300º (mechanical...
    $47.00 - $61.00
  • R22P Series Precision Conductive Plastic Potentiometer
    R22P Single Turn Conductive Plastic Potentiometer

    R22P Series

    340º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 22mm housing diameter. 1/4" shaft diameter. 22mm shaft length (FMS). 3/8 x 32 bushing (sleeve bearings). Metal housing. IP40
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R22P / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle R22PC: 360º (continuous) / R22P 340º (mechanical...
    $16.00
  • R23P Single Turn Conductive Plastic Potentiometer
    R23P Conductive Plastic Potentiometer

    R23P Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 2% linearity. 1/4" shaft diameter.
    $15.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $15.00
  • R23P / Single Turn Conductive Plastic Potentiometer

    R23P SRCWT R10K

    IP65 sealing. 320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 5K ohms. 2% linearity. 1/4" shaft diameter.
    $24.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $24.00
  • STC22ES Series

    STC22ES Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 10 million turns life. 1% linearity. 1/4" shaft diameter.
    $26.00
    Short Description --- Specifications Attribute Value Series / Type STC22ES / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 320º (mechanical end...
    $26.00
  • STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled

    STCOF30 R10K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 285º measuring angle (continuous, without end stop). Metal housing. Precision conductive plastic potentiometer. 10k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $123.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $123.00
  • P3 America Oil Filled Single Turn Conductive Plastic Potentiometer

    STCOF30S R5K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 280º measuring angle (with mechanical end stop). Metal housing. Precision conductive plastic potentiometer. 5k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $159.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30S / Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 310º (mechanical end...
    $159.00
