Potentiometric Linear Transducers With External or Internal Shaft Spring

Industrial displacement sensors in compact aluminum housings. The linear potentiometers of the series LMCR are space-saving designed and therefore suitable for applications with confined space. The compact and robust linear potentiometers of the SLP series feature a probe tip.

The potentiometric distance measurement is carried out with a high-resolution conductive plastic resistive element. Thanks to conductive plastic technology, the compact displacement encoder has a very long lifetime and high accuracy due to its good linearity. Since the linear potentiometer measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences.

Browse by Measurement Distance (Stroke Length), Shaft Type & more Hide Filters Show Filters

Show More

  • Internal spring
    External spring
(15mm version)

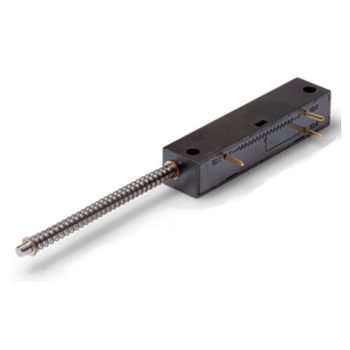

    LMCR8 Series

    8mm up to 15mm stroke lengths. Precision linear motion potentiometer. Shaft spring return. 8mm x 7mm low profile housing. 20 million cycle life.
    $50.00 - $82.00
    Short Description About 8 weeks delivery if not in stock. --- Specifications Attribute Value Type Shaft spring. Miniature. Through shaft. Measuring Distance (Stroke Length) 8, 11, 12 and 15 mm Spring Return Yes: ...
    $50.00 - $82.00
  • LMCR13 Series / Linear Motion Potentiometer w/Shaft Spring Return

    LMCR13 Series

    12mm up to 100mm stroke lengths. Precision linear motion potentiometer. Shaft spring return (external). Threaded shaft end. 12mm x 11mm low profile housing. 20 million cycle life.
    $91.00 - $135.00
    Short Description About 8 weeks delivery if not in stock. --- Specifications Attribute Value Type Shaft spring. Miniature. Precision. Measuring Distance (Stroke Length) 12, 25, 50 and 100 mm Spring Return Yes...
    $91.00 - $135.00
  • LMCR15 Series / Linear Motion Potentiometer w/Shaft Spring Return

    LMCR15 Series

    10mm up to 30mm stroke lengths. Precision linear motion potentiometer. Shaft spring return (internal). Threaded shaft end. 24mm x 15mm low profile housing. 20 million cycle life.
    $74.00 - $108.00
    Short Description About 8 weeks delivery if not in stock. --- Specifications Attribute Value Series / Type Shaft spring. Miniature. Precision. Measuring Distance (Stroke Length) 10, 15, 20 and 30 mm Spring Return Yes...
    $74.00 - $108.00
  • SLPIS Series / Linear Motion Potentiometer
cable output
    SLPIS Series / Linear Motion Potentiometer
connector output

    SLPIS Series

    10mm up to 100mm stroke lengths. Precision linear motion potentiometer. Shaft spring return (internal). Probe tip shaft end. Ø18mm aluminum housing. 100 million cycle life. IP65.
    $116.00 - $202.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Type Internal Shaft spring. Industrial. IP65. Measuring Distance (Stroke Length) 10 mm up to 100 mm Spring Return Yes (internal...
    $116.00 - $202.00
  • Cable version
    Connector version

    SLPS Series

    10mm up to 100mm stroke lengths. Precision linear motion potentiometer. Shaft spring return (external). Probe tip shaft end. Ø18mm aluminum housing. 100 million cycle life. IP65.
    $149.00 - $219.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Type External Shaft spring. Industrial. IP65. Measuring Distance (Stroke Lengths) 10 mm up to 100 mm Spring Return Yes (external...
    $149.00 - $219.00
  • SLPKS Series / Linear Motion Potentiometer
    SLPKS Series / Linear Motion Potentiometer

    SLPKS Series

    10mm up to 100mm stroke lengths. Precision linear motion potentiometer. Shaft spring return (external). Probe tip shaft end. Ø18mm aluminum housing. 100 million cycle life. IP65.
    $116.00 - $202.00
    Short Description About 5 weeks delivery if not in stock. --- Specifications Attribute Value Type External Shaft spring. Industrial. IP65. Measuring Distance (Stroke Lengths) 10 mm up to 100 mm Spring Return Yes (external...
    $116.00 - $202.00
