SX Mechanics Series

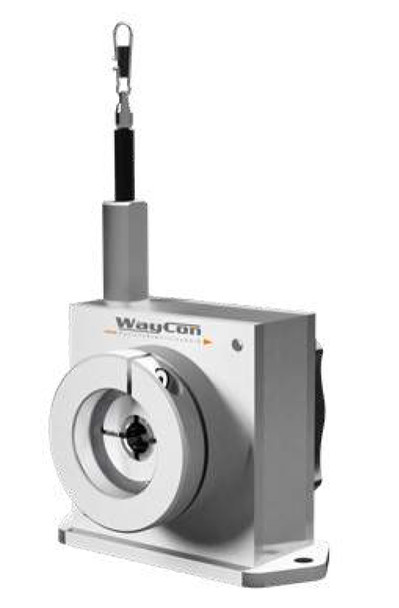

SX Mechanics series for adaptation to customer supplied encoder. Measuring lengths of 1 meter up to 42.5m. The dynamics of the draw wire transducer allows a high motion speed and acceleration of the measuring target. Its rugged design and high quality makes applications in harsh industrial environments possible. Encoder requirements: 36 mm clamping flange, 20 mm shaft length, 10 mm shaft diameter.

SKU:

Select an option below

Specifications

Specifications

Attribute	Value
Type	SX135 Mechanics Series for Encoder Assembly
Measurement Range	from 1 meter up to 42.5 meters
Encoder Requirements	clamping flange diameter: 36 mm, shaft diameter: 10 mm, shaft length: 20 mm
Linearity	±0.05% (with encoder output)
Mechanical Data	extraction force, maximum velocity and acceleration - see 'Technical Data' in pdf datasheet
Draw Wire	stainless steel V2A Ø 0.5 mm
Working Temperature	-20ºC...+85ºC (optional: -40º...+85ºC or -20ºC...+120ºC)
Housing	Aluminum, anodized, spring case PA6

MH60 Series

Draw wire sensor for construction machinery and mobile hydraulic applications. 1...4 meters measuring lengths. Analog output signals (potentiometer, 0...5V, 0....10V or 4 - 20mA). ±0.5% linearity (0.25% or 0.1% option). IP67 (IP69K option)

$302.00 - $528.00

Short Description 6 - 8 weeks delivery. --- Specifications Attribute

$302.00 - $528.00

Choose Options

MH120 - Draw Wire Sensor — Choose Options

MH120 Series

Draw wire sensor optimized for offshore and port applications. 3...10 meters measuring lengths. Analog output signals (potentiometer, 0...5V, 0....10V or 4 - 20mA). ±0.5% linearity (0.25% or 0.1% option). IP67 (IP69K option)

$402.00 - $638.00

Short Description 6 - 8 weeks delivery. --- Specifications Attribute

$402.00 - $638.00

Choose Options

SX50 - Draw Wire Sensor — Choose Options

SX50 Series

Draw wire sensor. Cost-effective and flexible solution for a wide range of industrial applications. 50...1250 millimeters measuring lengths. Analog output signals (potentiometer, 0....10V or 4 - 20mA). ±0.5% linearity. IP65 (IP67 option)

$375.00 - $558.00

Short Description 6 - 8 weeks delivery. --- Specifications Attribute

$375.00 - $558.00

Choose Options
