IP65/IP67 Protection Grade

IP65/IP67 Protection Grade

Displacement sensors used in applications with harsh environmental conditions

P3 America stocks potentiometers actuated by a push rod, with an internal sealing that provides an IP65 protection grade. We also carry linear motion potentiometers actuated by a sliding magnetic cursor. These potentiometers feature a sealing of IP67 and can be used in hydraulic applications with max. 250 bar.

The potentiometric distance measurement is carried out with a high-resolution conductive plastic resistive element. The displacement encoder has a very long lifetime and high accuracy due to its good linearity. Since the potentiometric measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature-stable, and robust against EMC influences.

Industrial grade with high precision, both the IP65 and IP67 potentiometers are fully protected against dust ingress (dust tight). IP65 can withstand direct water jets and IP67 can withstand temporary water immersion.

Order with P3 America

You can speak directly with a P3 America sales engineer and talk tech about the IP67 and IP65 potentiometers needed for your project. We’ll find a stock model or custom engineer the parts ourselves to make sure they fit your needs.

Browse by Measurement Distance (Stroke Length), Shaft Type & more Hide Filters Show Filters

Show More

  • Cable version
    Connector version

    SLPC Series

    Compact with dual rod end bearings. 10mm up to 400mm stroke lengths. Precision linearity and very long life. Ø18mm aluminum housing. IP65.
    $134.00 - $243.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Compact  linear displacement transducer with rod end bearings Measuring Distance (Stroke Lengths) 10 mm up to 400 mm Repeatability < 0.01...
    $134.00 - $243.00
  • SLPIS Series / Linear Motion Potentiometer
cable output
    SLPIS Series / Linear Motion Potentiometer
connector output

    SLPIS Series (w/Shaft Spring)

    Internal shaft spring. 10mm up to 100mm stroke lengths. Probe tip shaft end. Ø18mm aluminum housing. Long life and high accuracy. IP65.
    $134.00 - $194.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Precision potentiometer with internal shaft spring. Measuring Distance (Stroke Length) 10 mm up to 100 mm Spring Return Yes (internal...
    $134.00 - $194.00
  • SLPK Linear Potentiometer
Cable connection
    SLPK Linear Potentiometer
Connector

    SLPK Series

    Through shaft with M5 threaded shaft ends. 10 mm up to 200 mm stroke lengths. Ø18mm aluminum housing. Long life and high accuracy. IP65.
    $140.00 - $233.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Precision conductive plastic linear potentiometer Measuring Distance (Stroke Lengths) 10 mm up to 200 mm Spring...
    $140.00 - $233.00

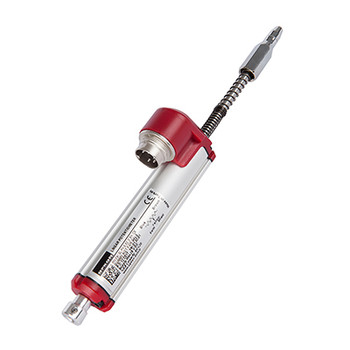

  • SLPKS Series / Linear Motion Potentiometer
Cable connection
    SLPKS Series / Linear Motion Potentiometer
Connector

    SLPKS Series (w/Shaft Spring)

    External shaft spring. 10mm up to 100mm stroke lengths. Probe tip shaft end. Ø18mm aluminum housing. Long life and high accuracy. IP65.
    $131.00 - $219.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type External Shaft spring. Industrial. IP65. Measuring Distance (Stroke Length) 10 mm up to 100 mm Spring Return Yes (external...
    $131.00 - $219.00
  • Cable version
    Connector version

    SLPT Series

    Swivel joint for lateral misalignment. 10mm up to 400mm stroke lengths. Precision linearity and long life. Ø18mm aluminum housing. IP65.
    $122.00 - $243.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Potentiometric Linear Displacement Sensor Measuring Distance (Stroke Lengths) 10 mm up to 400 mm Spring Return No  Element Conductive...
    $122.00 - $243.00
  • LSC Series

    LSC Series

    Ø25 mm aluminum housing. M14 threaded bushing . M5 threaded shaft end. 25mm up to 400mm stroke lengths. High accuracy and 100 million movements life. IP65.
    $241.00 - $325.00
    Short Description 3 - 5 weeks delivery if not in stock. Manufactured by OPKON --- Specifications Attribute Value Type Metal Housing with Bushing Mount. Heavy duty. IP65. Measuring Distance (Stroke Lengths) 25 up to 400...
    $241.00 - $325.00
  • ELSC Series

    ELSC Series

    Inernal signal conditioner; 0-10V or 4-20mA otutput. Ø25 mm aluminum housing. M14 threaded bushing . M5 threaded shaft end. 25mm up to 400mm stroke lengths. High accuracy and 100 million movements life. IP65.
    $340.00 - $433.00
    Short Description 3 - 5 weeks delivery. Manufactured by OPKON   --- Specifications Attribute Value Measuring Distance (Stroke Lengths) 50, 75, 100, 125, 150, 200, 250, 300, 350, 400 (mm) Linearity ±0.5% (<75mm),...
    $340.00 - $433.00

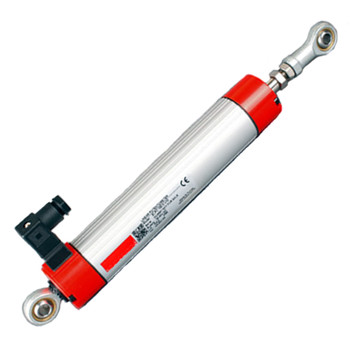

  • LPC Series  - Precision Linear Motion Potentiometer
    Shaft side rod end bearing

    LPC Series

    Heavy duty linear potentiometer with dual rod end (heim) bearings. Ø35mm aluminum housing. 50mm up to 800mm stroke lengths. High precision and excellent repeatability. 100 million movements life. IP65.
    $181.00 - $329.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Heavy duty linear displacement transducer with rod end bearings Measuring Distance (Stroke Lengths) 50 up to 800 mm Resistance Value 5k ohms (50...
    $181.00 - $329.00
  • ELPC Series - Linear Motion Potentiometer with integrated signal conditioner.
    shaft side rod end bearing

    ELPC

    Internal signal conditioner; 0-10V or 4-20mA output. Measuring lengths of 50mm up to 750mm. Dual rod end (heim) bearings. Ø35mm aluminum housing. 100 million movements life. IP65.
    $222.00 - $329.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Measuring Distance (Stroke Lengths) 50, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800 (mm) Linearity ±0.5%...
    $222.00 - $329.00
  • RTL Series - Linear Motion Potentiometer

    RTL Series

    33mm x 33mm aluminum housing. Up to 1000mm stroke lengths. Threaded shaft end or swivel bearing. High accuracy, long life and excellent repeatability. IP65.
    $120.00 - $308.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Type Industrial linear potentiometer. Measuring Distance (Stroke Lengths) 30 up to 1000 mm Resistance Value 5k ohms (50 - 600 mm), 10k ohms (650...
    $120.00 - $308.00
  • ERTL Series - Linear Motion Potentiometer w/ integrated signal conditioner.

    ERTL Series

    Internal signal conditioner; 0-10V or 4-20mA output. 30mm up to 1000mm stroke lengths. Threaded shaft end. 33mm x 33mm profile aluminum housing. 100 million movements life. IP65.
    $161.00 - $214.00
    Short Description Manufactured by OPKON --- Specifications Attribute Value Measuring Distance (Stroke Lengths) 30, 50, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000...
    $161.00 - $214.00
  • REM13 Series / Linear Motion Potentiometer

    REM13 Series

    50mm up to 1000mm stroke lengths. Precision linear motion potentiometer. Magnetic coupled sliding cursor. Ø13mm aluminum housing . 100 million cycle life. IP67.
    $310.00 - $495.00
    Short Description --- Specifications Attribute Value Type IP67. Fully sealed. Sliding cursor. Measuring Distance (Stroke Lengths) 50 mm up to 1000 mm Cursor Sliding. Magnetically coupled Element Conductive...
    $310.00 - $495.00
  • HEM12 100 I K R5K W20% L0.05% / Linear Motion Potentiometer

    HEM12 Series

    50mm up to 1000mm stroke lengths. Precision linear motion potentiometer. Magnetic coupled sliding cursor. 250 bar / 400 bar (peak) for in cylinder applications. Ø13mm stainless steel housing. 100 million cycle life. IP67.
    $345.00
    Short Description About 10 weeks delivery if not in stock. --- Specifications Attribute Value Type Magnetic cursor. IP67+. Stainless steel. 250 bar. Measuring Distance (Stroke Length) 50mm up to 1000 mm Cursor Sliding...
    $345.00
  • HEM16 150 E K3 R5K W20% L0.05% / Linear Motion Potentiometer

    HEM16 Series

    50mm up to 1000mm stroke lengths. Precision linear motion potentiometer. Magnetic coupled sliding cursor. 250 bar / 400 bar (peak) for in cylinder applications. Ø16mm stainless steel housing. 100 million cycle life. IP67.
    $509.00
    Short Description About 10 weeks delivery if not in stock. --- Specifications Attribute Value Type Magnetic cursor. IP67+. Stainless steel. 250 bar. Measuring Distance (Stroke Length) 50mm up to 1000 mm Cursor Sliding...
    $509.00
