P3 America’s analog output Hall effect rotary encoders are available in a variety of measuring angles, mounting styles and shaft styles. They have become industry staples for controlling speed and monitoring positions in a variety of industrial applications. You will find them in robotics, automated industrial machines, elevators, consumer electronics, and many other automated machines.

  • Sensor housing, mounting ring and push on magnet holder

    MAB12AH

    Miniature kit encoder in Ø12.7 mm housing with PWM or analog output. Suitable for shafts from Ø2 mm…6.35 mm. Supply voltage 5 VDC.
    $74.00 - $86.00
    Short Description --- Specifications Attribute Value Series / Type MAB12AH / Hall Effect Potentiometer Electrical Angle 360º  (clockwise (CW) or counter clockwise (CCW) Mechanical Angle 360º...
    $74.00 - $86.00
  • ERCK 2410 360 / Hall Effect Potentiometer

    ERCK Series

    True 360º measuring angle (or any fraction). Supplied magnet attaches to your shaft. Housing fits over magnet. 0 - 5 V, 0 - 10V, 4 - 20 mA outputs. 22mm housing diameter. IP65.
    $35.00 - $57.00
    Short Description --- Specifications Attribute Value Series / Type ERCK / Hall Effect Analog Kit Encoder Electrical Angle 360º (or any fraction) Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V...
    $35.00 - $57.00
  • MAB22AH / Hall Effect Potentiometer

    MAB22AH 12HS 0505

    Supplied magnet attaches to your shaft end. Housing fits over magnet. 360º measuring angle. 12 bit resolution. 0 - 5V output. IP67
    $85.00
    Short Description --- Specifications Attribute Value Series / Type MAB22AH / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $85.00

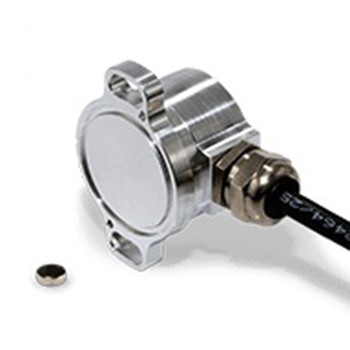

  • HTA25K  Series
    HTA25K  Series

    HTA25K Series

    Kit encoder. Hall effect. Analog output. Ø25 mm metal housing. Absolute analog voltage or milli-amp output. 12 bit resolution. Flange mount. IP65.
    Short Description Analog Hall Effect Rotary Kit Encoder Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25KX) Analog: Voltage/current output Field programmable single turn,...
  • ERCF 1 0505 360 Z / Hall Effect Potentiometer

    ERCF Series

    True 360º measuring angle (or any fraction). Flange mount. 0 - 5V, 0 - 10V, 4 - 20 mA outputs. 12 bit resolution. 6mm shaft diameter. 0.5% linearity. IP65.
    $46.00 - $60.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer - Flange Mount Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V (see pdf,...
    $46.00 - $60.00
  • STHE12

    STHE12

    Hall effect precision potentiometer. Ø13 mm metal housing. 90º measuring angle. 0.5 to 4.5V output (5V supply). Low power consumption. Wide operating temperature. Long life.
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE12 / Hall Effect Potentiometer Electrical Angle 90º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $74.00
  • STHE18 Hall Effect Potentiometer
(Spade Terminals)
    STHE18L Hall Effect Potentiometer
(150mm Lead Wires, AWG26)

    STHE18 Series

    18mm diameter. 90º (±45º) measuring angle. 0.5 - 4.5V output. Bushing or flange mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE18 / Hall Effect Potentiometer Electrical Angle 90º (±45º) Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $74.00
  • ERC 3 0505 360 / Hall Effect Potentiometer

    ERC Series

    360º measuring angle. 22mm housing diameter. 0 - 5V, 0 - 10V or 4 - 20mA output options. 12 bit resolution. 1/4" shaft diameter. 0.5% linearity. IP65.
    $39.00 - $67.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer Electrical Angle 360º  (customer specified angle can be factory programmed) Mechanical Angle 360º is standard...
    $39.00 - $67.00
  • STI22F Series

    STI22F Series

    22mm diameter. 100º measuring angle. 0.5 - 4.5V output. Bushing mount. 4mm shaft diameter. 0.5% linearity. IP40 or IP65.
    $124.00 - $136.00
    Short Description --- Specifications Attribute Value Series / Type STI22F / Inductive Potentiometer - Contactless Electrical Angle Standard: 100º (±50º)  / Optional: 50º (±25º) up to 160º...
    $124.00 - $136.00
  • STHE22 / Hall Effect Potentiometer
    STHE22 / Hall Effect Potentiometer

    STHE22-5

    22mm diameter. 360º measuring angle. 0.5 - 4.5V output. Bushing mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $96.00
    Short Description --- Specifications Attribute Value Series / Type STHE22 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $96.00
  • ETA25 Hall Effect Potentiometer

    ETA25 Series

    360º measuring angle (or any fraction). 25mm housing diameter. Analog voltage or milli-amp output. 12 bit resolution. Reliable encoders with numerous electronic and mechanical options.
    $65.00 - $72.00
    Short Description --- Specifications Attribute Value Series / Type ETA25 / Hall Effect Potentiometer Electrical Angle 360º (any angle factory programmable, minimum 10º) Mechanical Angle Standard: 360º...
    $65.00 - $72.00
  • ETA25PS 6x22 0505 LA / Hall Effect Potentiometer LA

    ETA25PS

    Measuring angle (up to 360º) and direction are dip switch selectable. 3.3V, 5V or 0...10V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ETA25PS / Hall Effect Potentiometer Electrical Angle Any Angle (min. 20º) up to 360º: Dip Switch Selectable Mechanical Angle 360º...
    $80.00
  • STHE30 / Hall Effect Potentiometer
    STHE30 / Hall Effect Potentiometer

    STHE30-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $129.00
  • STHE30 F/ Hall Effect Potentiometer
    STHE30 F/ Hall Effect Potentiometer

    STHE30F-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Flange or bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description 6 - 8 weeks delivery --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $129.00
  • STI22FS

    STI22FS

    Precision inductive (contactless) potentiometer. 100º measuring angle. 22mm metal housing. Servo mount (ball bearings). Low torque, long life. Analog voltage output. IP40.
    $141.00 - $182.00
    Short Description --- Specifications Attribute Value Series / Type STI22FS / Inductive Potentiometer - Contactless Potentiometer Electrical Angle Standard: 100° • (Special: 50° ~ 160° possible, please consult...
    $141.00 - $182.00
  • HTA25 Analog Encoder
Axial connector
    HTA25 Analog Encoder
Axial connector

    HTA25 Series

    Ø25 mm metal housing. Single-turn hall effect encoder. Absolute analog voltage or milli-amp output. 12 bit resolution. Servo mount (ball bearing). IP65S, IP67 or IP68. Customizable.
    $172.00
    Short Description Analog Hall Effect Encoder - Absolute Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25X) Analog: Voltage/current output Field programmable single turn,...
    $172.00
  • MAB28A / Hall Effect Potentiometer

    MAB28A 12 0505

    360º measuring angle. 0 - 5V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity. IP65.
    $152.00
    Short Description --- Specifications Attribute Value Series / Type MAB28A / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $152.00
  • SCH22 / Hall Effect Potentiometer - Sine Cosine

    SCH22

    Sine cosine. Hall effect. 0.8% conformity tolerance. Servo mount.
    $190.00
    Short Description --- Specifications Attribute Value Series / Type SCH22 / Hall Effect Potentiometer - Sine Cosine Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $190.00

Reduce Wear and Tear for Greater ROI

One of the greatest benefits of using Hall effect encoders for analog output is the fact that it is a contactless device. It operates without the sliding wiper employed by traditional precision potentiometer, which means a longer mechanical life, low electrical noise, high vibration immunity and low hysteresis. They are a durable and reliable option for automated machines and vehicles that operate in harsh environments.

P3 America offers the widest variety of analog hall effect encoders in the USA. Our analog output Hall effect rotary encoders are a cost-effective and long-lasting solution for a variety of applications.

P3 America Offers Expert Solutions

Choosing the right Hall effect encoder to resolve angular position with an analog output doesn’t have to be overwhelming. The engineers at P3 America have been doing this for a long time. We can discuss your needs and work with you to create a solution if we don’t already have one. We’ve been known to work with suppliers to create custom products for small and large orders. You can rely on our many years of expertise to make the right decision for your application.

With the best product delivery times in the industry and volume discounts, you can’t go wrong with P3 America. Call to speak directly with an applications engineer who can help find or create the ideal component for your needs. 512-337-7336.
