S-Beam Load Cells

S-Beam Load Cells

Symmetrical load cell (force transducer) with strain gauge measurement technology

Because of the good dynamic behavior, the symmetrical design and the slim structure, these S-shaped force transducers are often used in materials testing machines, the monitoring of tension ropes or in lifting devices as well as in medical technology. They have a centric thread at the top and bottom for force and torque measurements for force application in the pulling or pushing direction.

Due to their simple structure, S-Beam sensors are a real alternative to high-priced force sensors. S-Beams made of stainless steel should be used for dynamic loads, for use outdoors or where work is regularly carried out with strong and aggressive media. If the load is purely static, then an aluminum version is usually completely sufficient.

Our ‘KM’ series provide a standard 2.0 mV/V output requiring external signal conditioning. Our ‘KT’ series feature an integrated signal conditioner allowing for analog 0 – 10V or 4 – 20mA output signals.

Contact us today to discuss your measurement and S beam load cell requirements. Call 512-337-7336.

  • KT1503 S-Beam Load Cell w/Integrated Signal Conditioner

    KT1503 K 5KN 2442 D

    1124 lb. (5KN) capacity. S-Beam load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 4 - 20mA output. IP40
    $467.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 1124 lb. (5kN) - Compression Rated Output 4 -...
    $467.00
  • KT1503 S-Beam Load Cell w/Integrated Signal Conditioner

    KT1503 K 2KN 2442 D

    450 lb. (2KN) capacity. S-Beam load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 4 - 20mA output. IP40
    $467.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 450 lb. (2kN) - Compression Rated Output 4 -...
    $467.00
  • KT1503 S-Beam Load Cell w/Integrated Signal Conditioner

    KT1503 K 10KN 2442 D

    2248 lb. (10KN) capacity. S-Beam load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 4 - 20mA output. IP40
    $467.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 2248 lb. (10kN) - Compression Rated Output 4 -...
    $467.00
  • KT1503 S-Beam Load Cell w/Integrated Signal Conditioner

    KT1503 K 10KN 2410 D

    2248 lb. (10KN) capacity. S-Beam load cell with integrated signal conditioner. Compression and Tension. Calibrated for Compression (type D). 0 - 10V output. IP40
    $550.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell w/integrated signal conditioner Capacity (Rated Force) 2248 lb. (10kN) - Compression Rated Output 0 - 10V...
    $550.00

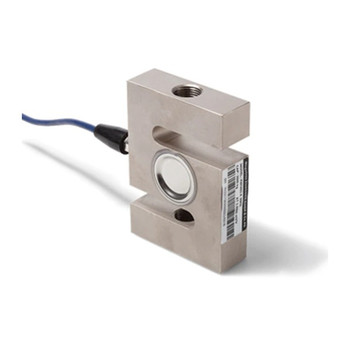

  • KM1603 S-Beam Load Cell

    KM1603 K 50KN

    11,240 lb. (50KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP67
    $548.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 11,240 lb. (50kN) Rated Output 2.0 mV/V nominal Relative...
    $548.00
  • KM1603 S-Beam Load Cell

    KM1603 K 30KN

    6744 lb. (30KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP67
    $548.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 6744 lb. (30kN) Rated Output 2.0 mV/V nominal Relative...
    $548.00
  • KM1506 S-Beam Load Cell

    KM1506 K 20KN

    4496 lb. (20KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP65
    $255.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 4496 lb. (20kN) Rated Output 2.0 mV/V nominal Relative...
    $255.00
  • KM1506 S-Beam Load Cell

    KM1506 K 15KN

    3372 lb. (15KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP65
    $255.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 3372 lb. (15kN) Rated Output 2.0 mV/V nominal Relative...
    $255.00
  • KM1506 S-Beam Load Cell

    KM1506 K 10KN

    2248 lb. (10KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP65
    $255.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 2248 lb. (10kN) Rated Output 2.0 mV/V nominal Relative...
    $255.00
  • KM1506 S-Beam Load Cell

    KM1506 K 5KN

    1124 lb. (5KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP65
    $255.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 1124 lb. (5kN) Rated Output 2.0 mV/V nominal Relative...
    $255.00
  • KM1506 S-Beam Load Cell

    KM1506 K 2KN

    450 lb. (2KN) capacity. Stainless steel. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP65
    $351.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 450lb. (2kN) Rated Output 2.0 mV/V nominal Relative...
    $351.00

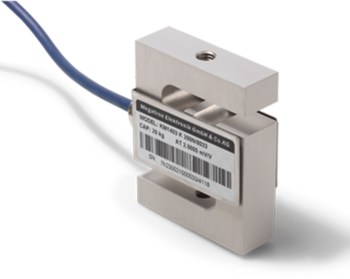

  • KM1403 S-Beam Load Cell

    KM1403 K 1KN

    224 lb. (1KN) capacity. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP54
    $228.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 224 lb. (1kN) Rated Output 2.0 mV/V nominal Relative...
    $228.00
  • KM1403 S-Beam Load Cell

    KM1403 K 500N

    112 lb. (500N) capacity. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP54
    $228.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 112 lb. (500N) Rated Output 2.0 mV/V nominal Relative...
    $228.00
  • KM1403 S-Beam Load Cell

    KM1403 K 100N

    22 lb. (100N) capacity. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP54
    $228.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 22 lb. (100N) Rated Output 2.0 mV/V nominal Relative...
    $228.00
  • KM1503 S-Beam Force Sensor

    KM1503 K 10KN

    2248 lb. (10KN) capacity. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP54
    $237.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 2248 lb. (10KN) Rated Output 2.0 mV/V nominal Relative...
    $237.00
  • KM1503 S-Beam Force Sensor

    KM1503 K 2KN

    450 lb. (2KN) capacity. S-Beam load cell. Compression and Tension. 2.0 mV/V output. IP54
    $237.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 450 lb. (2KN) Rated Output 2.0 mV/V nominal Relative...
    $237.00

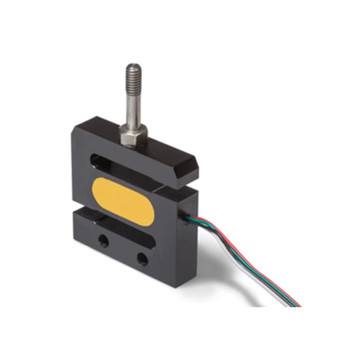

  • KM500 S-Beam Load Cell

    KM500 K 500N

    112 lb. (500N) capacity. Compact S-Beam load cell. M6 outer force transmission thread. 2.0 mV/V output. IP54
    $118.00
    Short Description Manufactured by Megatron --- Specifications Attribute Value Series / Type S-Beam Force Load Cell (Tension or Compression) Capacity (Rated Force) 112 lb. (500N) Rated Output 2 mV/V nominal Relative...
    $118.00

Options and Features

Every measurement requirement is different, that’s why we offer a wide range of options and features for you to choose from. Our wide range of S beam load cells means you’re sure to find the ideal measurement solution for your application.

Custom Solutions

As one of the few American based specialists in the field, we’re able to offer rapid prototyping and small scale product customization. If you don’t see the S beam load cell applications you need—we’ll build it for you. Contact our engineers today to discuss your exact specifications to have a custom load cell built for your application.

Built Tough

Load Cells measure compression, force, and tension. That means they need to be built tough to deliver accurate, trustworthy measurements in often harsh conditions. We manufacture our S beam load cells to perform reliably in a range of work elements including heat, cold, moisture, and much more.

Accurate, Reliable Measurements

Since 2004, P3 America has delivered automation and electromechanical products and solutions that work. We’ve become one of the most trusted names in the field because our products are reliable and long-lasting.

To find the ideal S beam load cell for your operational requirements, Contact us to speak with an applications engineer.
