P3 America’s selection of absolute rotary encoders includes great choices for many applications. Absolute rotary encoders are used to measure the velocity, direction of motion or position of a rotating shaft. These sensors are available in several housing configurations to enable mounting in a wide range of applications.

  • Sensor housing, mounting ring and push on magnet holder

    MAB12AH

    Miniature kit encoder in Ø12.7 mm housing with PWM or analog output. Suitable for shafts from Ø2 mm…6.35 mm. Supply voltage 5 VDC.
    $74.00 - $86.00
    Short Description --- Specifications Attribute Value Series / Type MAB12AH / Hall Effect Potentiometer Electrical Angle 360º  (clockwise (CW) or counter clockwise (CCW) Mechanical Angle 360º...
    $74.00 - $86.00
  • ERCK 2410 360 / Hall Effect Potentiometer

    ERCK Series

    True 360º measuring angle (or any fraction). Supplied magnet attaches to your shaft. Housing fits over magnet. 0 - 5 V, 0 - 10V, 4 - 20 mA outputs. 22mm housing diameter. IP65.
    $35.00 - $57.00
    Short Description --- Specifications Attribute Value Series / Type ERCK / Hall Effect Analog Kit Encoder Electrical Angle 360º (or any fraction) Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V...
    $35.00 - $57.00
  • MAB22AH / Hall Effect Potentiometer

    MAB22AH 12HS 0505

    Supplied magnet attaches to your shaft end. Housing fits over magnet. 360º measuring angle. 12 bit resolution. 0 - 5V output. IP67
    $85.00
    Short Description --- Specifications Attribute Value Series / Type MAB22AH / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $85.00
  • HTA25K  Series
    HTA25K  Series

    HTA25K Series

    Kit encoder. Hall effect. Analog output. Ø25 mm metal housing. Absolute analog voltage or milli-amp output. 12 bit resolution. Flange mount. IP65.
    Short Description Analog Hall Effect Rotary Kit Encoder Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25KX) Analog: Voltage/current output Field programmable single turn,...
  • ERCF 1 0505 360 Z / Hall Effect Potentiometer

    ERCF Series

    True 360º measuring angle (or any fraction). Flange mount. 0 - 5V, 0 - 10V, 4 - 20 mA outputs. 12 bit resolution. 6mm shaft diameter. 0.5% linearity. IP65.
    $46.00 - $60.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer - Flange Mount Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5V up to 30V (see pdf,...
    $46.00 - $60.00
  • STHE12

    STHE12

    Hall effect precision potentiometer. Ø13 mm metal housing. 90º measuring angle. 0.5 to 4.5V output (5V supply). Low power consumption. Wide operating temperature. Long life.
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE12 / Hall Effect Potentiometer Electrical Angle 90º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $74.00
  • ERCK 05SPI 360 - Hall Effect Encoder - SPI Output 360

    ERCK 05SPI 360

    SPI output. Supplied magnet attaches to your shaft. Housing fits over magnet. 5V. IP65.
    $43.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Encoder - SPI Output Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $43.00

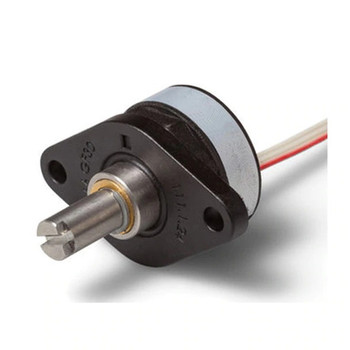

  • ERCF 1 05SPI 360 Z - Hall Effect Encoder - SPI Output

    ERCF 1 05SPI 360 Z

    SPI output. 14 bit resolution. 6 mm shaft diameter. 5V. IP65.
    $57.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Encoder - SPI Output Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $57.00
  • ERC 1 05SPI 360 - Hall Effect Encoder - SPI Output

    ERC 1 05SPI 360

    SPI output. 14 bit resolution. 6 mm shaft diameter. 5V. IP65.
    $56.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Encoder - SPI Output Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $56.00
  • STHE18 Hall Effect Potentiometer
(Spade Terminals)
    STHE18L Hall Effect Potentiometer
(150mm Lead Wires, AWG26)

    STHE18 Series

    18mm diameter. 90º (±45º) measuring angle. 0.5 - 4.5V output. Bushing or flange mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $74.00
    Short Description --- Specifications Attribute Value Series / Type STHE18 / Hall Effect Potentiometer Electrical Angle 90º (±45º) Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $74.00
  • ERC 3 0505 360 / Hall Effect Potentiometer

    ERC Series

    360º measuring angle. 22mm housing diameter. 0 - 5V, 0 - 10V or 4 - 20mA output options. 12 bit resolution. 1/4" shaft diameter. 0.5% linearity. IP65.
    $39.00 - $67.00
    Short Description --- Specifications Attribute Value Series / Type ERC / Hall Effect Potentiometer Electrical Angle 360º  (customer specified angle can be factory programmed) Mechanical Angle 360º is standard...
    $39.00 - $67.00
  • STI22F Series

    STI22F Series

    22mm diameter. 100º measuring angle. 0.5 - 4.5V output. Bushing mount. 4mm shaft diameter. 0.5% linearity. IP40 or IP65.
    $124.00 - $136.00
    Short Description --- Specifications Attribute Value Series / Type STI22F / Inductive Potentiometer - Contactless Electrical Angle Standard: 100º (±50º)  / Optional: 50º (±25º) up to 160º...
    $124.00 - $136.00
  • STHE22 / Hall Effect Potentiometer
    STHE22 / Hall Effect Potentiometer

    STHE22-5

    22mm diameter. 360º measuring angle. 0.5 - 4.5V output. Bushing mount. 4.5mm flatted shaft. 0.5% linearity. High EMS / ESD tolerance. IP65
    $96.00
    Short Description --- Specifications Attribute Value Series / Type STHE22 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $96.00
  • ETA25 Hall Effect Potentiometer

    ETA25 Series

    360º measuring angle (or any fraction). 25mm housing diameter. Analog voltage or milli-amp output. 12 bit resolution. Reliable encoders with numerous electronic and mechanical options.
    $65.00 - $72.00
    Short Description --- Specifications Attribute Value Series / Type ETA25 / Hall Effect Potentiometer Electrical Angle 360º (any angle factory programmable, minimum 10º) Mechanical Angle Standard: 360º...
    $65.00 - $72.00
  • ETA25PS 6x22 0505 LA / Hall Effect Potentiometer LA

    ETA25PS

    Measuring angle (up to 360º) and direction are dip switch selectable. 3.3V, 5V or 0...10V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ETA25PS / Hall Effect Potentiometer Electrical Angle Any Angle (min. 20º) up to 360º: Dip Switch Selectable Mechanical Angle 360º...
    $80.00
  • ERCF 1 05SSI Z / Hall Effect Encoder

    ERCF 1 05SSI Z

    SSI output. 12 bit resolution. 6mm shaft diameter. 5V. IP65.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ERCF/ Hall Effect Encoder Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $80.00
  • STHE30 / Hall Effect Potentiometer
    STHE30 / Hall Effect Potentiometer

    STHE30-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0.5 -...
    $129.00
  • STHE30 F/ Hall Effect Potentiometer
    STHE30 F/ Hall Effect Potentiometer

    STHE30F-5

    Magnetic rotary encoder (Hall effect) with very wide operating temperature range in protection class IP65 in Ø27 mm housing with optional redundant electronics. Flange or bushing mount. High EMS / ESD tolerance.
    $129.00
    Short Description 6 - 8 weeks delivery --- Specifications Attribute Value Series / Type STHE30 / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $129.00
  • STI22FS

    STI22FS

    Precision inductive (contactless) potentiometer. 100º measuring angle. 22mm metal housing. Servo mount (ball bearings). Low torque, long life. Analog voltage output. IP40.
    $141.00 - $182.00
    Short Description --- Specifications Attribute Value Series / Type STI22FS / Inductive Potentiometer - Contactless Potentiometer Electrical Angle Standard: 100° • (Special: 50° ~ 160° possible, please consult...
    $141.00 - $182.00
  • HTA25 Analog Encoder
Axial connector
    HTA25 Analog Encoder
Axial connector

    HTA25 Series

    Ø25 mm metal housing. Single-turn hall effect encoder. Absolute analog voltage or milli-amp output. 12 bit resolution. Servo mount (ball bearing). IP65S, IP67 or IP68. Customizable.
    $172.00
    Short Description Analog Hall Effect Encoder - Absolute Ø25mm metal housing Single-turn (up to 360º, measuring angle factory programmable) Redundant option (type HTA25X) Analog: Voltage/current output Field programmable single turn,...
    $172.00
  • MAB28A / Hall Effect Potentiometer

    MAB28A 12 0505

    360º measuring angle. 0 - 5V output. 12 bit resolution. 6mm shaft diameter. 0.3% linearity. IP65.
    $152.00
    Short Description --- Specifications Attribute Value Series / Type MAB28A / Hall Effect Potentiometer Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC ±10% Output 0 -...
    $152.00
  • ERCF 1 24SSI Z / Hall Effect Encoder

    ERCF 1 24SSI Z

    SSI output. 12 bit resolution. 6mm shaft diameter. 24V. IP65.
    $80.00
    Short Description --- Specifications Attribute Value Series / Type ERCF/ Hall Effect Encoder Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 15 - 30...
    $80.00
  • SCH22 / Hall Effect Potentiometer - Sine Cosine

    SCH22

    Sine cosine. Hall effect. 0.8% conformity tolerance. Servo mount.
    $190.00
    Short Description --- Specifications Attribute Value Series / Type SCH22 / Hall Effect Potentiometer - Sine Cosine Electrical Angle 360º Mechanical Angle 360º (continuous) Supply Voltage 5 VDC...
    $190.00

P3 America’s selection of absolute rotary encoders includes great choices for many applications. Absolute rotary encoders are used to measure the velocity, direction of motion or position of a rotating shaft. These sensors are available in several housing configurations to enable mounting in a wide range of applications.

---

Faster Recovery After Power Loss

An absolute position rotary encoder will not lose position reference during power off/on. This technology is perfect for situations where it’s critical to know the absolute position of your rotating device at start-up to prevent damage to the machine or bodily injury to the operator. These products are industrial-grade, high-precision, and reliably operate over a long lifespan.

Find the Right Solution at P3 America

Choosing the right absolute rotary encoder can be a real challenge. There are many factors to consider based on your application needs. P3 America has been providing clients with applications engineering, rapid prototyping, OEM support, and distribution support for many years.

Contact an industry expert at P3 America for more information on the applications for these products or custom solutions. We are well equipped with the knowledge base to assist customers in any industry. If we can’t find a solution for you, we will engineer one. Volume-based discounts are available, even if the units are purchased over time.

Contact P3 America to speak with an expert about the best rotary encoders for your project.
