Precision Potentiometers

Precision Potentiometers

Conductive plastic and Wire-wound

Industrial grade potentiometers with much more precise electrical and mechanical tolerances, significantly increased lifespan, higher reliability and component quality than conventional low-cost potentiometers.

P3 America’s selection of precision engineered potentiometers is second to none. Our precision potentiometers come in a variety of sizes and measuring angles. Available in bushing mount (panel mount), servo mount (ball bearings) and hollow shaft (through shaft).  Our precision potentiometers are widely used in industrial applications such as industrial automation, mobile machinery, medical devices, control panels, robotics, and many other applications where precise input or feedback is required.

Potentiometers by P3America are manufactured in accordance with ISO9001 certification standards to meet or exceeds IEC 60393 and/or VRCI-P-100A standards.

  • 640P Series
    Choose Options

    640P Series

    Direct replacement for discontinued Honeywell 640 series thru-shaft potentiometer.
    $35.00
    Short Description --- Specifications Attribute Value Series / Type 640P Series / Thru-Shaft Potentiometer Electrical Angle 90º, 180º, 270º 330º or customer specified Mechanical Angle Same as electrical...
    $35.00
    Choose Options
  • NP24HS / Single Turn Conductive Plastic Potentiometer
    Choose Options

    NP24HS Series

    Hollow shaft. 340º measuring angle. Conductive plastic. 24mm housing diameter. 2% linearity. 6mm shaft acceptance (5.5mm flat). Mounting ring.
    $12.00
    Short Description --- Specifications Attribute Value Series / Type NP24HS / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Sleeve Resistance...
    $12.00
    Choose Options
  • RH24PC Hollow Shaft Potentiometer
    Choose Options

    RH24PC Series

    340º electrical measuring angle. Continuous rotation. Through hole (hollow shaft). Precision conductive plastic potentiometer. 5 million turns life. 24mm housing diameter. Shaft acceptance diameter is 6mm with a 5mm flat. IP 40.
    $15.00
    Short Description --- Specifications Attribute Value Series / Type RH24PC Series / Hollow Shaft (through shaft)  Potentiometer Electrical Angle 340º Mechanical Angle 360º...
    $15.00
    Choose Options
  • RH24PC Precision Hollow Shaft Potentiometer
    Choose Options

    RH24PC (110mm) Series

    340º electrical measuring angle. Continuous rotation. Through hole (hollow shaft). 110mm wire leads. Precision conductive plastic potentiometer. 5 million turns life. 24mm housing diameter. Shaft acceptance diameter is 6mm with a 5mm flat. IP 40.
    $16.00
    Short Description --- Specifications Attribute Value Series / Type RH24PC Series / Hollow Shaft (through shaft)  Potentiometer Electrical Angle 340º Mechanical Angle 360º...
    $16.00
    Choose Options
  • NP32HS Series
    Choose Options

    NP32HS Series

    Hollow shaft. 340º measuring angle. Conductive plastic. 32mm housing diameter. 2% linearity. 8mm shaft acceptance (7.5mm flat). Spring shim.
    $15.00 - $18.00
    Short Description --- Specifications Attribute Value Series / Type NP32HS / Hollow shaft conductive plastic potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Mounting / Bearing Hollow shaft...
    $15.00 - $18.00
    Choose Options
  • R25W / Single Turn Wire-Wound Potentiometer
    Choose Options

    R25W Series

    270º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 25mm housing diameter. 1/4" (6.35mm) shaft diameter. 25mm shaft length (FMS). 3/8"-32 bushing (sleeve bearing). IP54.
    $6.00
    Short Description --- Specifications Attribute Value Series / Type R25W / Single Turn Wire-Wound Potentiometer Electrical Angle 270º Mechanical Angle 285º (mechanical end stops) Bearing Sleeve Resistance...
    $6.00
    Choose Options
  • IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads
    IP54 Wire-Wound Precision Potentiometer w/6" Wire Leads
    Choose Options

    R25W-SRCWT Series

    270º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 25mm housing diameter. 1/4" (6.35mm) shaft diameter. 25mm shaft length (FMS). 3/8"-32 bushing (sleeve bearing). 12" cable length. IP65.
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R25W / Single Turn Wire-Wound Potentiometer Electrical Angle 270º Mechanical Angle 285º (mechanical end stops) Bearing Sleeve Resistance...
    $16.00
    Choose Options
  • POD20 Series / Precision Wire-Wound Potentiometer
    Choose Options

    POD20 MS 08 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 8mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00
    Choose Options
  • POD20 MS 16 Series / Precision Wire-Wound Potentiometer
    Choose Options

    POD20 MS 16 320

    318º measuring angle (with mechanical end stop). Wire-wound precision potentiometer. 100,000 turns life. 20mm housing diameter. 6mm shaft diameter. 16mm shaft length (from end of bushing). M10 x 75 bushing (sleeve bearing). IP65.
    $28.00
    Short Description --- Specifications Attribute Value Series / Type POD20 MS / Single Turn Wire-Wound Potentiometer Electrical Angle 318º Mechanical Angle 320º (mechanical end...
    $28.00
    Choose Options
  • STW22E - Precision Wire Wound Potentiometer
    Choose Options

    STW22E Series

    355º measuring angle (continuous rotation, without end stop). High precision wire-wound potentiometer. 500,000 turns life. 22mm housing diameter. 1/4" (6.35mm) shaft diameter. 22mm shaft length (FMS). 3/8" x 32 bushing (sleeve bearings). IP40
    $36.00
    Short Description --- Specifications Attribute Value Series / Type STW22E / Single Turn Wire Wound  Potentiometer Electrical Angle 355º Mechanical Angle 360º (continuous) Bearing Sleeve Resistance...
    $36.00
    Choose Options
  • STW22E - Precision Wire Wound Potentiometer
    Choose Options

    STW22ES Series

    320º measuring angle (with mechanical end stop). High precision wire-wound potentiometer. 500,000 turns life. 22mm housing diameter. 1/4" (6.35mm) shaft diameter. 22mm shaft length (FMS). 3/8" x 32 bushing (sleeve bearing). IP40.
    $46.00
    Short Description --- Specifications Attribute Value Series / Type STW22ES / Single Turn Wire Wound  Potentiometer Electrical Angle 320º Mechanical Angle 320º (with end stop) Bearing Sleeve Resistance...
    $46.00
    Choose Options
  • STWOF30 / Single Turn Wire Wound Potentiometer
    Add to Cart

    STWOF30 R2K ±10% L2%

    285º measuring angle (continuous, without end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 2k ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30 / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $129.00
    Add to Cart
  • STWOF30 / Single Turn Wire Wound Potentiometer
    Add to Cart

    STWOF30 R10K ±10% L0.5%

    285º measuring angle (continuous, without end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 10k ohms. 0.5% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP6
    $146.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30 / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $146.00
    Add to Cart
  • STWOF30 / Single Turn Wire Wound Potentiometer
    Add to Cart

    STWOF30 R5K ±10% L2%

    285º measuring angle (continuous, without end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 5k ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $129.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30 / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $129.00
    Add to Cart
  • STWOF30S R10K ±10% L2%
    Add to Cart

    STWOF30S R10K ±10% L2%

    285º measuring angle (with mechanical end stop). Heavy duty all metal housing. Oil filled for harsh environments. Precision wire wound potentiometer. 5K ohms. 2% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing). IP65.
    $175.00
    Short Description --- Specifications Attribute Value Series / Type STWOF30S / Single Turn Wire Wound Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 300º (mechanical end...
    $175.00
    Add to Cart
  • STWS30 Precision Wire Wound Potentiometer
    Add to Cart

    STWS30 R20K ±3% L0.5%

    355º measuring angle (continuous rotation, without end stop). High precision wire-wound potentiometer. 1,000,000 turns life. 27mm housing diameter. 3mm shaft diameter. 11.5mm shaft length (FMS). Servo mount (ball bearings). IP40.
    $153.00
    Short Description --- Specifications Attribute Value Series / Type STWS30 / Single Turn Wire-Wound Potentiometer Electrical Angle 355º Mechanical Angle 360º (continuous) Mounting / Bearing Servo Mount / Ball...
    $153.00
    Add to Cart
  • STWS45 / Single Turn Wire-Wound Potentiometer
    Choose Options

    STWS45 Series

    355º measuring angle (continuous rotation, without end stop). High precision wire-wound potentiometer. 1,000,000 turns life. 41mm housing diameter. 6mm shaft diameter. 31.5mm shaft length (FMS). Servo mount (ball bearings). IP40.
    $168.00 - $184.00
    Short Description --- Specifications Attribute Value Series / Type STWS45 / Single Turn Wire-Wound Potentiometer Electrical Angle 355º Mechanical Angle 360º (continuous) Mounting / Bearing Servo Mount / Ball...
    $168.00 - $184.00
    Choose Options
  • STWS50 / Single Turn Wire-Wound Potentiometer

    STWS50 R10K ±3% L0.5%

    355º measuring angle (continuous rotation, without end stop). High precision wire-wound potentiometer. 1,000,000 turns life. 51mm housing diameter. 6mm shaft diameter. 18mm shaft length (FMS). Servo mount (ball bearings). IP40.
    $175.00
    Short Description --- Specifications Attribute Value Series / Type STWS50 / Single Turn Wire-Wound Potentiometer Electrical Angle 355º Mechanical Angle 360º (continuous) Mounting / Bearing Servo Mount / Ball...
    $175.00
  • STWSC30 Sine Cosine Potentiometer Wire Wound

    STWSC50 R5K ±5% L1.0%

    Sine cosine. Wire wound. 5K ohms. 1% conformity tolerance. Servo mount. 6mm shaft diameter.
    $265.00
    Short Description --- Specifications Attribute Value Series / Type STWSC30 / Sine Cosine Potentiometer - Wire Wound Electrical Angle 360º Mounting / Bearing Servo Mount / Ball Bearings Resistance Value 5k...
    $265.00
  • STC12 Series
    Choose Options

    STC12 Series

    300º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 13mm housing diameter. 3mm shaft diameter. 20mm shaft length (FMS). M6 x 0.75 bushing (sleeve bearings). IP40
    $47.00 - $61.00
    Short Description --- Specifications Attribute Value Series / Type STC12 / Single Turn Conductive Plastic Potentiometer Electrical Angle 300º Mechanical Angle STC12: 360º (continuous) / STC12S 300º (mechanical...
    $47.00 - $61.00
    Choose Options

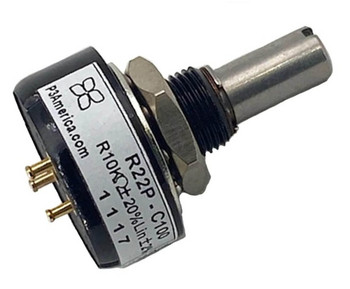

  • R22P Series Precision Conductive Plastic Potentiometer
    R22P Single Turn Conductive Plastic Potentiometer
    Choose Options

    R22P Series

    340º measuring angle. High precision conductive plastic potentiometer. 5,000,000 turns life. 22mm housing diameter. 1/4" shaft diameter. 22mm shaft length (FMS). 3/8 x 32 bushing (sleeve bearings). Metal housing. IP40
    $16.00
    Short Description --- Specifications Attribute Value Series / Type R22P / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle R22PC: 360º (continuous) / R22P 340º (mechanical...
    $16.00
    Choose Options
  • R23P Single Turn Conductive Plastic Potentiometer
    R23P Conductive Plastic Potentiometer
    Choose Options

    R23P Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 2% linearity. 1/4" shaft diameter.
    $15.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $15.00
    Choose Options
  • R23P / Single Turn Conductive Plastic Potentiometer
    Add to Cart

    R23P SRCWT R10K

    IP65 sealing. 320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 10K ohms. 2% linearity. 1/4" shaft diameter.
    $24.00
    Short Description --- Specifications Attribute Value Series / Type R23P / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 330º (mechanical end...
    $24.00
    Add to Cart
  • STC22ES Series
    Choose Options

    STC22ES Series

    320º measuring angle (with mechanical end stop). Bushing mount. Conductive plastic. 10 million turns life. 1% linearity. 1/4" shaft diameter.
    $26.00 - $71.00
    Short Description --- Specifications Attribute Value Series / Type STC22ES / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 320º (mechanical end...
    $26.00 - $71.00
    Choose Options
  • STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled

    STCOF30 R10K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 285º measuring angle (continuous, without end stop). Metal housing. Precision conductive plastic potentiometer. 10k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $123.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30/ Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 360º...
    $123.00
  • P3 America Oil Filled Single Turn Conductive Plastic Potentiometer
    Add to Cart

    STCOF30S R5K ±10% L1%

    Heavy duty - oil filled (harsh environs). IP65. 280º measuring angle (with mechanical end stop). Metal housing. Precision conductive plastic potentiometer. 5k ohms. 1% linearity. 5mm shaft diameter. M8 x 0.75 threaded bushing (sleeve bearing).
    $159.00
    Short Description --- Specifications Attribute Value Series / Type STCOF30S / Single Turn Conductive Plastic Potentiometer - Oil Filled Electrical Angle 280º Mechanical Angle 310º (mechanical end...
    $159.00
    Add to Cart
  • STC12S Precision Potentiometer
    Choose Options

    STCS12 Series

    300º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 10,000,000 turns life. 13mm housing diameter. 3mm shaft diameter. 11.5mm shaft length (FMS). Metal housing. IP40
    $66.00
    Short Description --- Specifications Attribute Value Series / Type STCS12 / Single Turn Conductive Plastic Potentiometer - Servo Mount Electrical Angle 300º Mechanical Angle 360º (continuous...
    $66.00
    Choose Options
  • STCS22A / Single Turn Conductive Plastic Potentiometer

    STCS22A Series

    320º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 20,000,000 turns life. 22mm housing diameter. 1/4" shaft diameter. 11.5mm shaft length (FMS). Metal housing. IP40
    $63.00
    Short Description --- Specifications Attribute Value Series / Type STCS22A Series - Precision Conductive Plastic Potentiometer - Servo Mount Electrical Angle 320º Mechanical Angle 360º (continuous) Bearing Ball...
    $63.00
  • STCS22 / Single Turn Conductive Plastic Potentiometer
    Choose Options

    STCS22 Series

    320º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 22mm housing diameter. 3mm shaft diameter. Metal housing. IP40
    $109.00 - $119.00
    Short Description --- Specifications Attribute Value Series / Type STCS22 / Single Turn Conductive Plastic Potentiometer Electrical Angle 320º Mechanical Angle 360º (continuous) Bearing Ball...
    $109.00 - $119.00
    Choose Options
  • P3 America sine cosine potentiometer

    STCSC22 Series

    Sine cosine. Conductive plastic element. 2% conformity tolerance. Servo mount.
    $198.00
    Short Description --- Specifications Attribute Value Series / Type STCSC22 / Sine Cosine Potentiometer Electrical Angle 360º Mounting / Bearing Servo Mount / Ball Bearings Resistance Value 500, 1k, 2k, 5k, 10k, 20k,...
    $198.00
  • STCS30 / Single Turn Conductive Plastic Potentiometer

    STCS30 R1K ±10% L0.2%

    340º measuring angle. Conductive plastic element. 1K ohms. 0.2% linearity. 3mm shaft diameter.
    $127.00
    Short Description --- Specifications Attribute Value Series / Type STCS30 / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Ball...
    $127.00
  • STCS40 / Single Turn Conductive Plastic Potentiometer
    Choose Options

    STCS40 Series

    340º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 37mm housing diameter. 6mm shaft diameter. Metal housing. IP40
    $147.00 - $153.00
    Short Description --- Specifications Attribute Value Series / Type STCS40 / Single Turn Conductive Plastic Potentiometer Electrical Angle 340º Mechanical Angle 360º (continuous) Bearing Ball...
    $147.00 - $153.00
    Choose Options
  • STCS40 / Dual Gang Single Turn Conductive Plastic Potentiometer

    STCS40 R5K/5K ±5% L0.1%

    Dual gang. 340º measuring angle. Conductive plastic element. 5K/5K ohms. 0.1% linearity. 6mm shaft diameter.
    $306.00
    Short Description --- Specifications Attribute Value Series / Type STCS40 / Dual Gang Single Turn Conductive Plastic Potentiometer Electrical Angle 340º / 340º Mechanical Angle 360º...
    $306.00
  • STCS50 Series
    Choose Options

    STCS50 Series

    350º measuring angle. Servo mount (ball bearings). High precision conductive plastic potentiometer. 50,000,000 turns life. 50mm housing diameter. 6mm shaft diameter. Metal housing. IP40
    $198.00
    Short Description --- Specifications Attribute Value Series / Type STCS50 / Single Turn Conductive Plastic Potentiometer Electrical Angle 350º Mechanical Angle 360º (continuous) Bearing Ball...
    $198.00
    Choose Options
  • STCSC50 R5K ±15% L0.5%

    STCSC50 R5K ±15% L0.5%

    Sine cosine. Conductive plastic element. 0.5% conformity tolerance. 5K ohms. Servo mount.
    $240.00
    Short Description --- Specifications Attribute Value Series / Type STCSC50 / Sine Cosine Potentiometer Electrical Angle 360º Mounting / Bearing Servo Mount / Ball Bearings Resistance Value 5K ohms...
    $240.00

Better Performance at a Lower Cost

We’ve put in many years of research and development to create a line of precision potentiometers that are more durable and cost-effective for a vast array of applications. These sensors are manufactured to meet increasing requirements for endurance, accuracy and long mechanical life. They are highly accurate, robust and able to stand up to frequent changes in position in any application.

Get Fully Customized at P3 America

Deciding which sensor technology is right for your application can be time-consuming and expensive if you don’t understand the variables involved. P3 America is one of the few US-based specialists for precision potentiometers, encoders, and industrial joysticks. Our engineering experts are available to answer questions about manufacturing any product to your specific needs. You can get any pot customized in large or small quantities. We are ready to put our prolific experience with rapid prototyping, application engineering, OEM support, and distribution support services to work for you. Partner with our engineers to find cost-effective, long-lasting solutions for any project.
